Pinout 20 - IC Wings - A tidy way of connecting to IC Chips, to help with retro upgrades, breakout points or Diagnostics

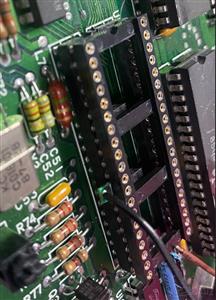

This provides a way or connecting to Socketed ICs with out having to solder straight onto legs or even bend up legs.

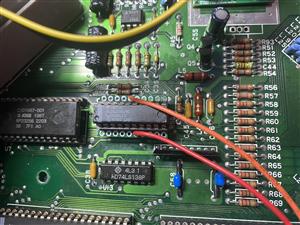

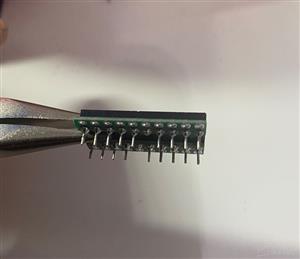

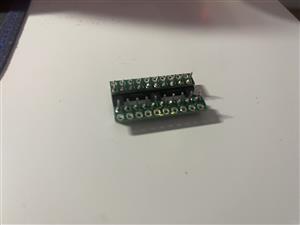

Simply cut the strip down to the required size, file the edges smooth and then slide onto a machine socket IC and solder into place.
You can either solder on pins for connection test points, or even direct wiring.
if your project requires that the IC leg must not connect to the socket below, you can simply cut and file away the sockets leg so it does not make contact.
Please note :-
Order these at 0.8mm Thickess
If you order 5, you will only get Five 20 pin strips, You have to keep increasing the quantity until the price starts to go up.
For example:-
I found you can get 40 Strips for $5 USD, if you then select more it will start to increase in price, Please be clever with your quantity selection to maximise your order.
