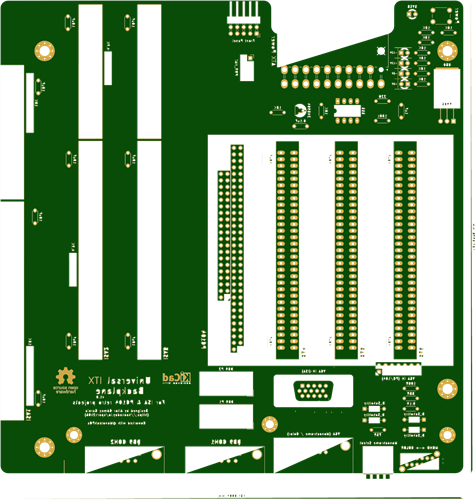

PC-104 16 Bit ISA Backplane adapter (8 bit and 16 bit slots)

4 Layers PCB 184.9 x 181 mm FR-4, 1.6 mm, 1, HASL with lead, Green Solder Mask, White silkscreen
PC-104 Adapter to allow the use of normal ISA cards with Industrial PC modules, only ISA support! (BOM ON GERBER DOWNLOAD)
