Mini Switch

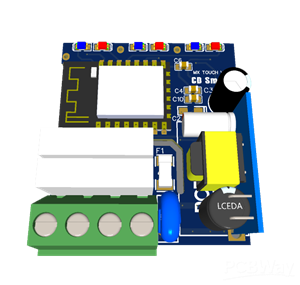

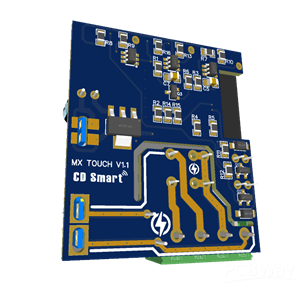

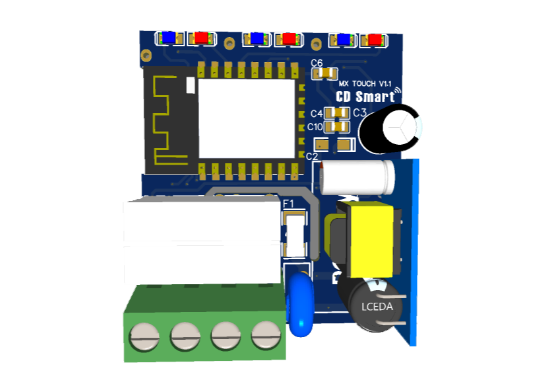

Smart Control Board 2CH_5A
The Smart Control Board 2CH_5A is a compact and reliable dual-channel control module designed for efficient switching and automation applications. Each channel supports up to 5A load capacity, making it suitable for controlling lighting systems, small motors, pumps, heating elements, and various AC/DC loads.
This board is engineered for stability, safety, and ease of integration into custom projects. It can be interfaced with microcontrollers such as ESP8266 or other embedded systems, making it ideal for smart home automation, industrial control prototypes, and IoT-based solutions.

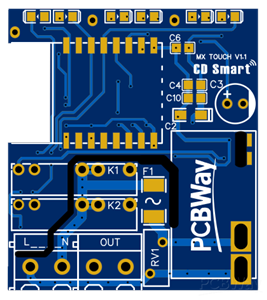

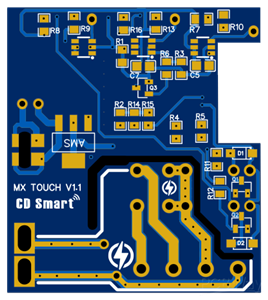

The design focuses on durability and clean PCB layout to ensure optimal current handling and minimal signal interference. With clearly labeled terminals and control pins, installation and maintenance are straightforward.
