Motivation

The Inertial Measurement Unit (IMU) is an excellent choice for learning embedded systems and navigation algorithms. However, it is exceptionally difficult to find a development board that truly stands out: one that is purely focused on IMU functionality, uses a relatively new, high-precision sensor, and is fully transparent and open-source across every technical step.

This comprehensive transparency must extend from the schematic design and PCB layout, through the bare-metal embedded development, the IMU driver and data processing, the attitude determination (AHRS) calculation, and finally to the host GUI interface.

Recognizing this significant gap was the driving force behind the creation of this IMU.

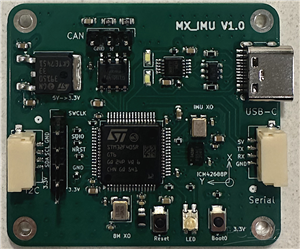

🔬 MX IMU V1.0 Overview

This is a fully open-source Inertial Measurement Unit (IMU) development board built around the STM32F405 processor, the ICM42688-P IMU sensor.

It is highly suitable for experiment-oriented purposes, sensor fusion research, and prototype development. The package includes the schematic, PCB layout, firmware source code, and a Python MAVLink-based GUI.

⚙️ Key Specifications and Features

Hardware Components and specifications

Microcontroller: STM32F405 Processor.

IMU Sensor: ICM42688-P (High-precision and low-noise).

External Clocking: External 8M active crystal oscillator (for MCU)

                 External 32.768kHz active crystal oscillator (for IMU).

Interfaces: Serial USB-C, 1 UART(TTL) , 1 I2C, 1 CAN 2.0B

Flexible power supply:  USB-C

Protocol supported: MAVLink, CAN2.0B,  DroneCAN and  ROS2

Static test : Yaw instability 0.01deg/hour

Open-Source & Software Support

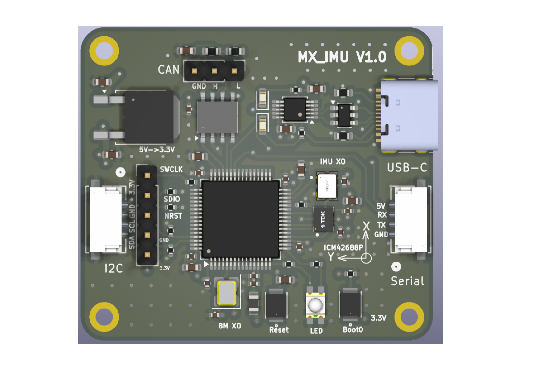

Hardware: Open-source schematic and PCB design file with KiCAD

https://github.com/leelili444/Hardware

Firmware: Open-source firmware source code developed with STM32CubeIDE and CubeMX.

https://github.com/leelili444/imu_firmware

GUI: 1. Python GUI for online parameter tuning and data logging via MAVLink protocol. 2. Julia GUI for customized protocol

https://github.com/leelili444/IMU_GUI

Support: Online tutorial provided.

https://mx-motion.gitbook.io/tutorial
