LCD adapter
Free displays!
Millions of disposable vapes end up in the trash every day. Almost all of them contain rechargeable Li-ion batteries, but some models have color LCD displays!

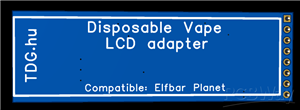

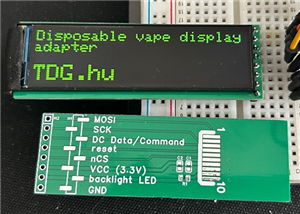

Those come with fragile ribbon cables. This adapter PCB adds support, some power filtering (100nF and 1uF), and a limiter resistor for the LED backlight for convenience. (and 2 pin headers, one SMD, one TH, you choose)
Just try not to break them while opening the case. I already broke 3!
LCD adapter
Project images are for reference only. Actual production is based on the manufacturing files on the project page.
Please review the designer's notes (e.g., PCB thickness) and select the appropriate options.
PCBWay is not responsible
for issues caused by unsuitable parameter selections.
