Description

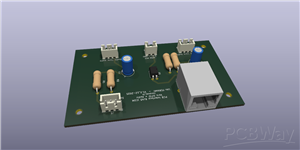

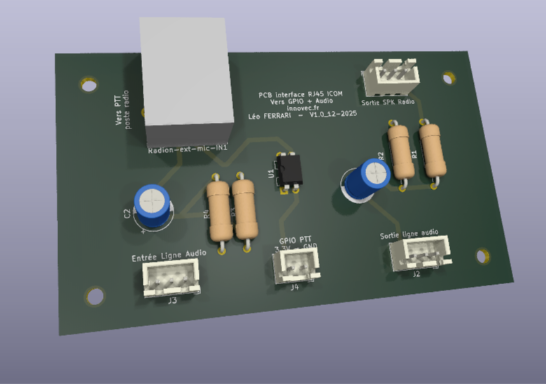

Interface Icom to Raspberry for radio over ip ROIP

This interface allows Icom radios equipped with an RJ45 PTT connector and a 3.5 mm speaker output to be connected to a Raspberry Pi, enabling remote control and operation over a Radio over IP (RoIP) system.

This board attenuates the speaker output to match the line-level input of the Raspberry Pi. It also attenuates the Raspberry Pi’s line output to make it suitable for the radio’s microphone input.

Note: The Raspberry Pi only provides a single audio jack output. Therefore, I use a low-cost USB sound card (input + output), purchased online for around $4.

The software was developed in-house with the help of AI tools. It remains fairly basic and has not been published. A minimal web interface allows remote control of the PTT (ON/OFF) when the Raspberry Pi is connected.

The voice transmission (audio TX) part is still under development. However, the hardware side is complete, tested, and fully functional.

Download Gerbers Download BOM(Bill of materials)
