Description

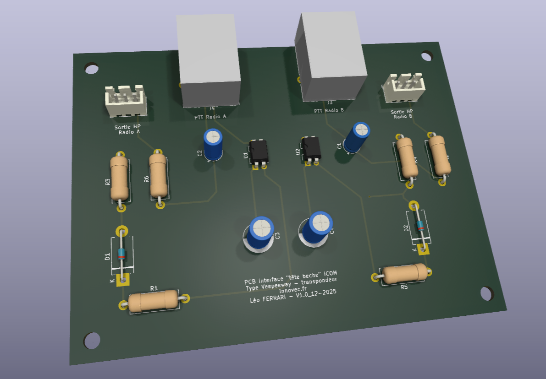

ICOM PTT rj45 transponder
Interface allowing two ICOM radios to be connected back-to-back in order to create a transponder.
When one radio receives a signal, the speaker output power triggers an optocoupler, which switches the second radio into transmit mode.
This circuit is compatible with ICOM radios equipped with an RJ45 microphone connector, such as the IC-F510 model in my case.
Mar 25,2026
8 views
ICOM PTT rj45 transponder
Interface allowing two ICOM radios to be connected back-to-back in order to create a transponder.
8
0
0
Published: Mar 25,2026
Standard PCB
Download Gerber file 0
BOM(Bill of materials)
PCBWay Donate 10% cost To Author
Only PCB
PCB+Assembly
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-ShareAlike (CC BY-SA)
License.
