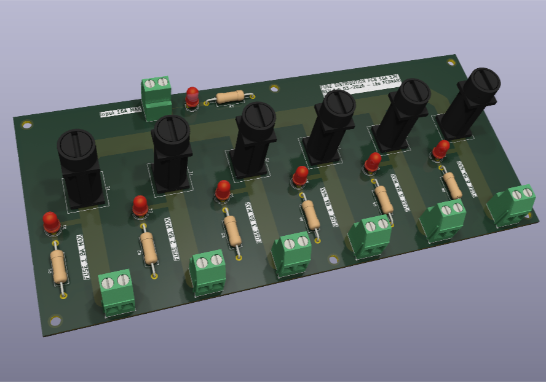

Fuse distribution PCB 16A 6 output 12V
Power distribution board with LED indication for fuse fault detection.
Maximum capacity: 16A at 12V for all outputs combined.
Maximum pulse current: 8A per output.
Continuous current: 5A per output. The total current must not exceed 16A.
Please use 70 µm copper thickness on PCB layers.
Tin plating is recommended, as it can significantly reduce the risk of trace overheating.
Fuse distribution PCB 16A 6 output 12V
Project images are for reference only. Actual production is based on the manufacturing files on the project page.
Please review the designer's notes (e.g., PCB thickness) and select the appropriate options.
PCBWay is not responsible
for issues caused by unsuitable parameter selections.
For more important ordering information, please refer to
