Happy Keyboard

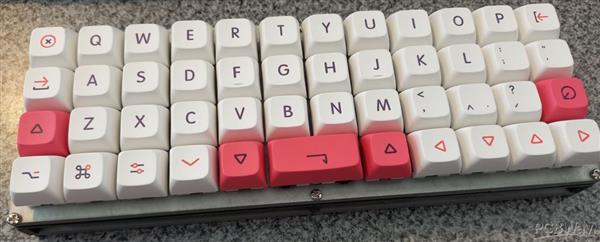

A 40% (47 keys) ortholinear keyboard using the RP2040 and KMK firmware. Low cost design, with sandwich case.
Features
- 2U space button
- Dual switch footprint. Support direct solder or Kailh hostswap socket.
- SMD diodes.
- Raspberry Pi Pico form.
- Programmable with KMK Firmware. Require Circuitpython to run.
- Assembly with M3 standoffs and screws.
- Design with Kicad.
Part List
- 1x RP2040 in the form of the Raspberry Pi Pico, but the black version with USB C.
- 47x 1N4148 SOD-123
- 47x brown Outemu switches (Cherry MX type).
- White keycaps with pink theme.
- Optional Kailh Hotswap sockets.
Enclosure

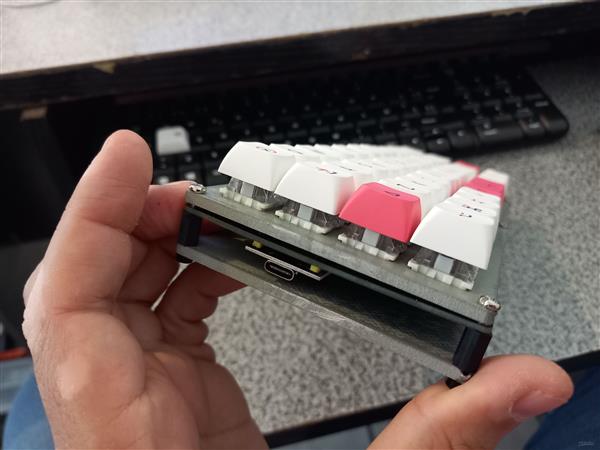

- Aluminium or Acrylic. Bottom: 3 mm. Plate: 1.5 mm.
- 6x M3X8 mm. standoffs.
- 6x M3X6 mm. Screws.
- 6x M3X4 mm. screws.
Layers

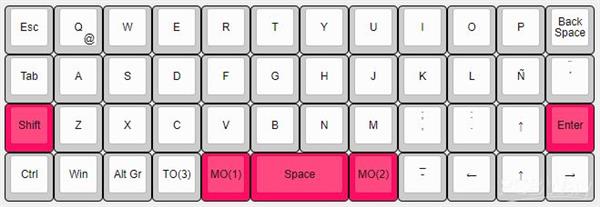

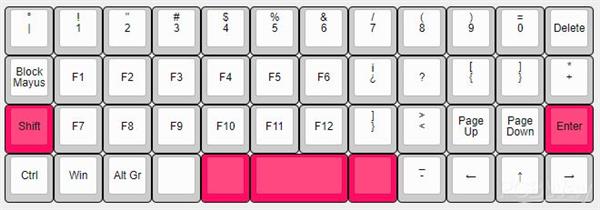

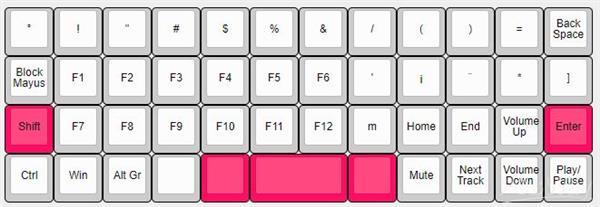

My keyboard language is Spanish. Here my keycode layers.

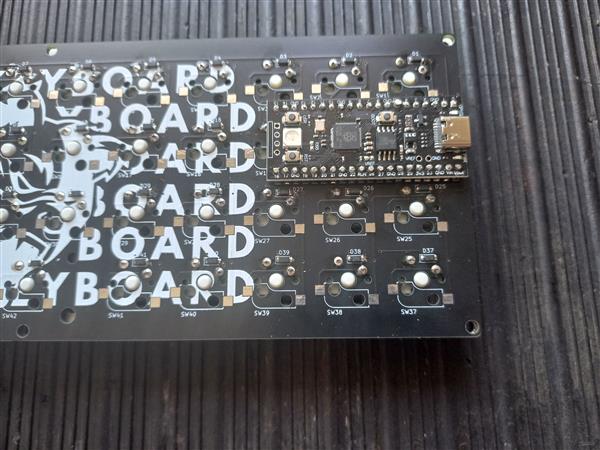

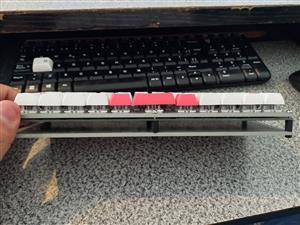

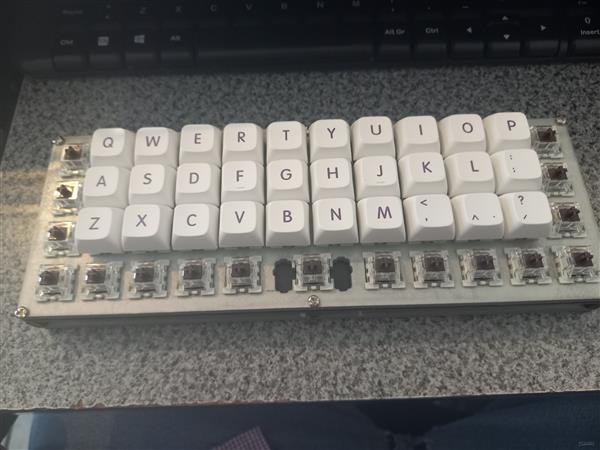

More images
Code
Firmware Release
https://github.com/jluisalegria/Happy-Keyboard/releases/tag/v1.0.0

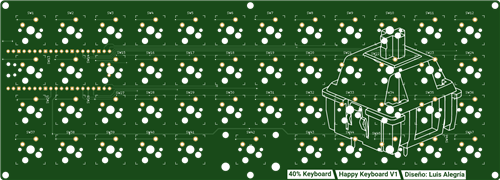

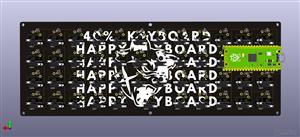

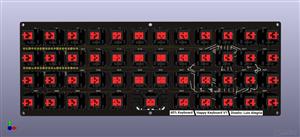

Schematic and Layout
PCB
https://github.com/jluisalegria/Happy-Keyboard/tree/master/PCB
CAD-Custom parts and enclosures
Case
https://github.com/jluisalegria/Happy-Keyboard/tree/master/Enclosure
bottom.dxf
Plate.dxf
May 05,2023
3,387 views
Happy Keyboard
47 keys (Plank type) with the RP2040 in the Raspberry Pi Pico form, and KMK firmware. Sandwich case.
3387
12
0
Published: May 05,2023
Standard PCB
Download Gerber file 31
BOM(Bill of materials)
Centroid file
PCBWay Donate 10% cost To Author
File Last Updated: 2024/04/15 (GMT+8)
File update record
2024-04-1509:23:47
Centroid file is updated.
2024-01-0415:15:07
Parts List (BOM) is updated.
2023-05-0509:44:00
CAD or technical drawing file is updated.
Only PCB
PCB+Assembly
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-MIT
License.
