Components
|
HC-SR505 Mini Infrared PIR Motion Sensor Precise Infrared Detector Module |
x 1 | |
|
|
CAMERA-OV2640 |
x 1 | |
|

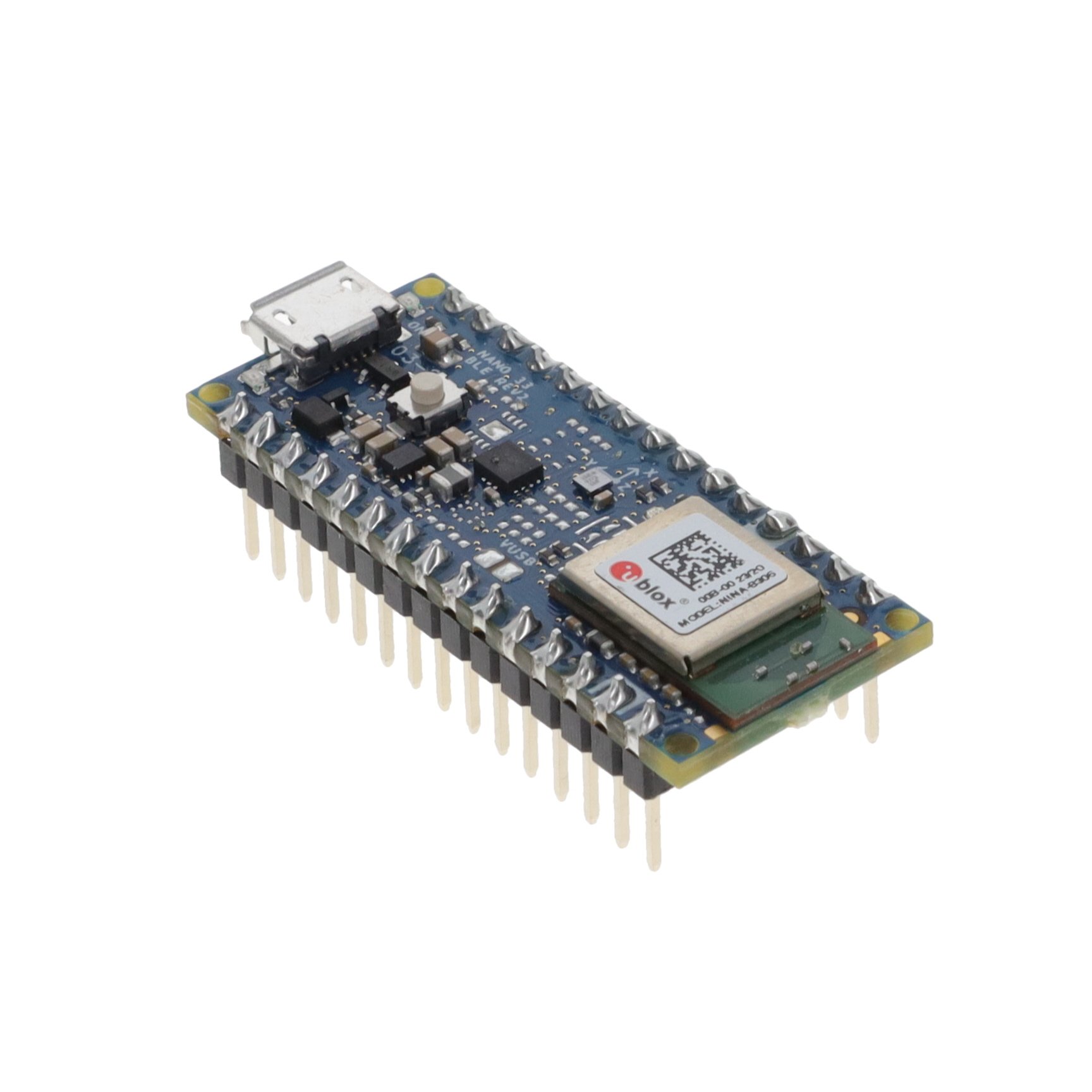

ABX00072Arduino
|
x 1 | |
|
Reed sensor module magnetron switch |
x 1 |
Tools, APP Software Used etc.
|
arduino IDEArduino
|
Description
Guard Eye- AI-Powered Security System

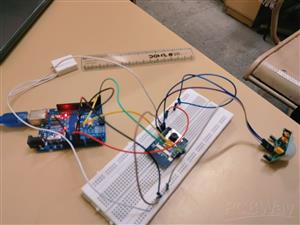

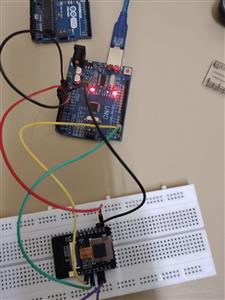

The AI-Powered Security System is a monitoring system that uses the ESP32-CAM and sensors to detect motion, door activity, and capture images when suspicious movement occurs. It combines IoT and AI-based image recognition to enhance home and office security, providing a cost-effective and reliable surveillance setup.
Features

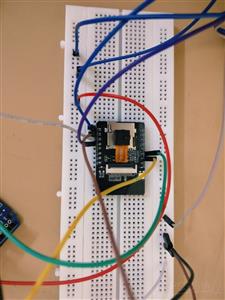

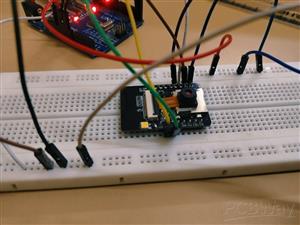

Captures real-time images using ESP32-CAM
Sends captured images to a Telegram chat via a bot
Analyzes each image with Imagga for label detection and recognition
Operates autonomously once powered on
Cloud-based communication with no local server req
uired
Code
code
https://github.com/prashantgarg8/GuardEye

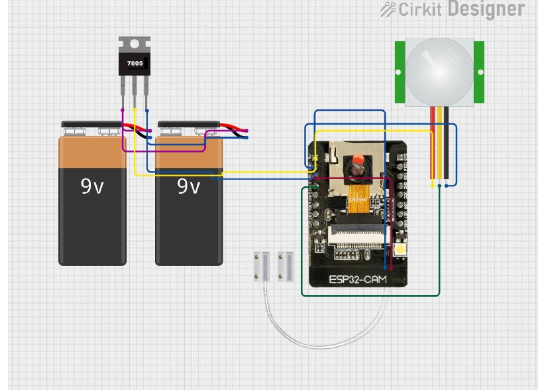

Schematic and Layout
schematics
https://github.com/prashantgarg8/GuardEye
