Product Description

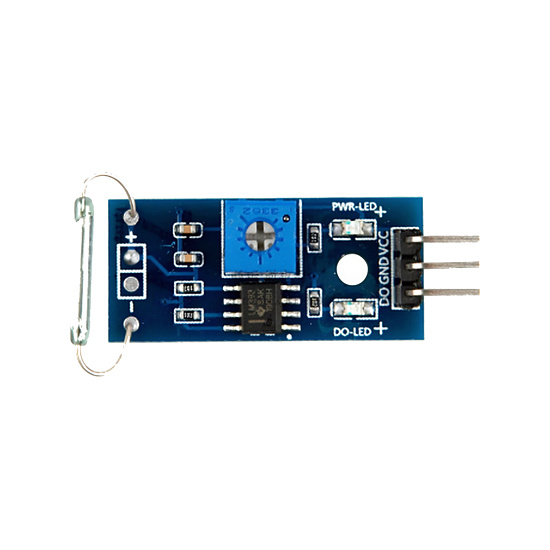

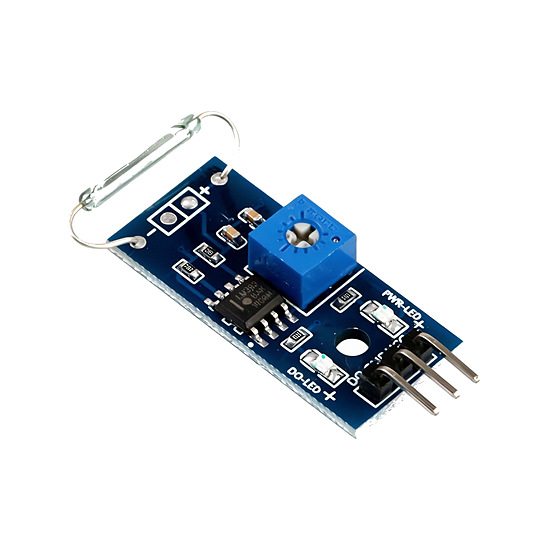

Reed sensor module magnetron switch

Product features:

Brand New High Quality.

The probe the temperature sensor DS18B20 chip.

High quality stainless steel tube encapsulation.

Waterproof moistureproof prevent rust.

Stainless steel shell 6mm*50mm.


Product description:

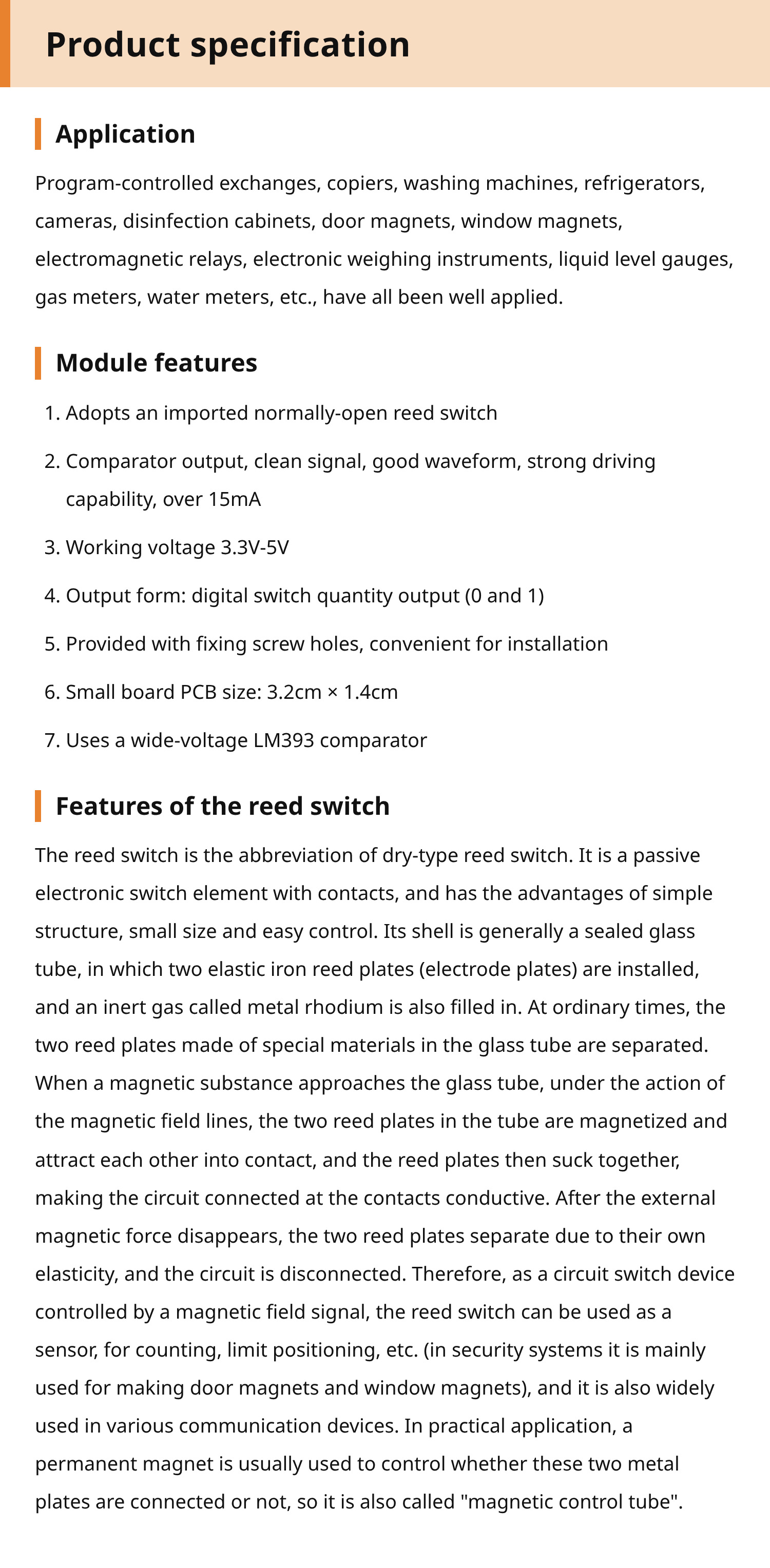

Imported normally open reed switch

The comparator output, the signal is clean, the waveform, driving ability, more than 15mA.

Operating voltage 3.3V-5V

The output in the form: Digital switching outputs (0 and 1)

A fixed bolt hole for easy installation

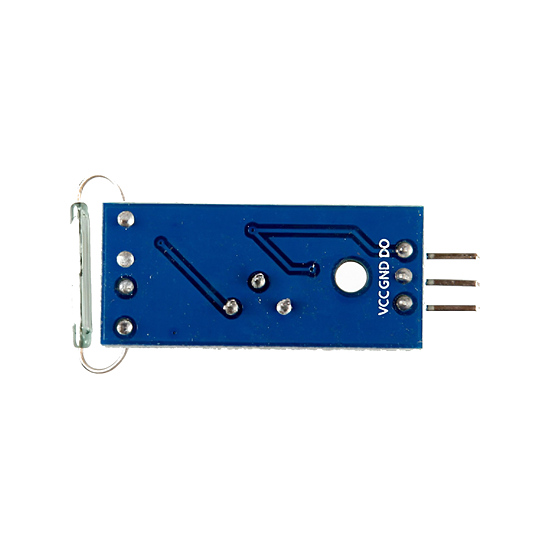

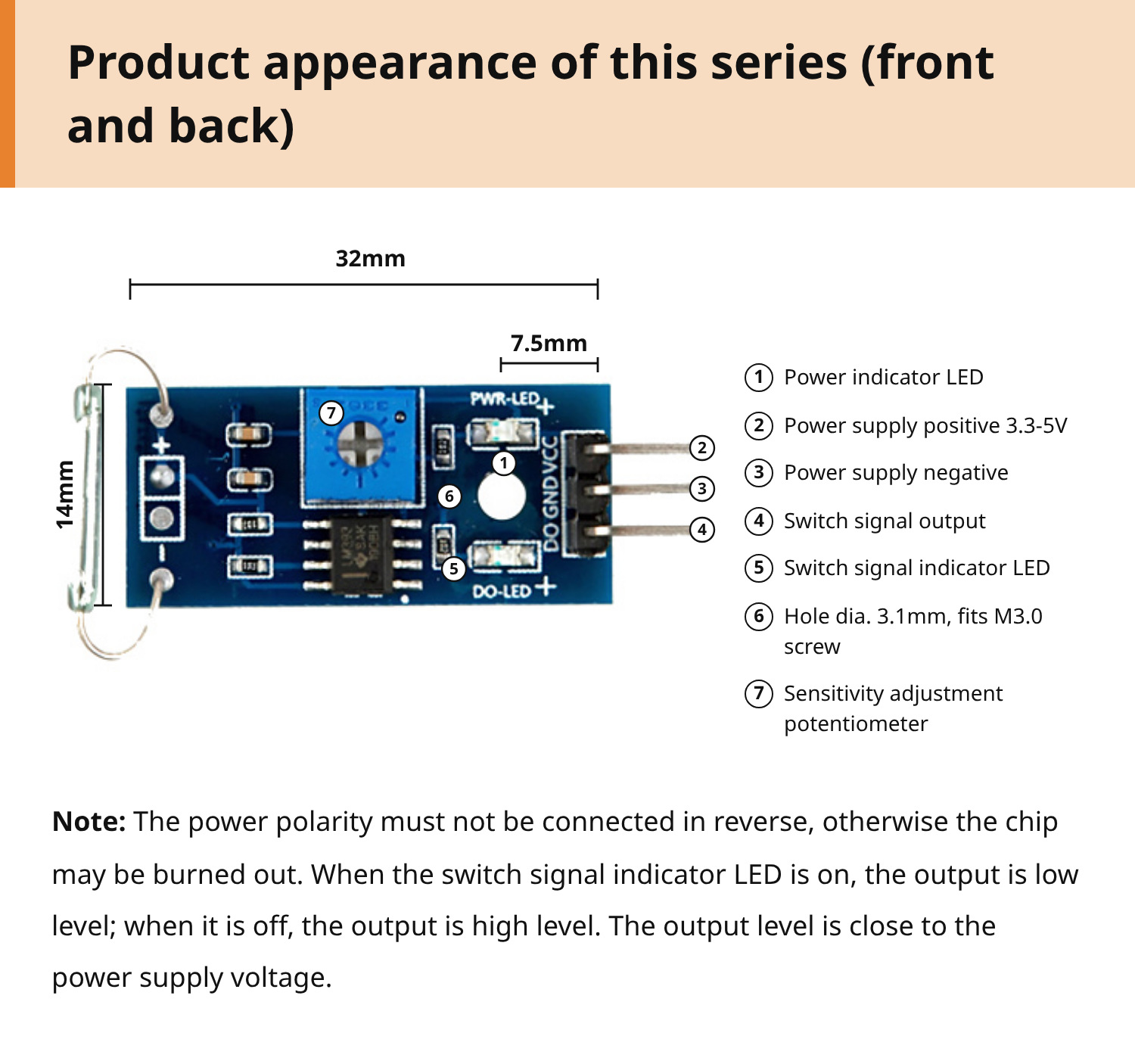

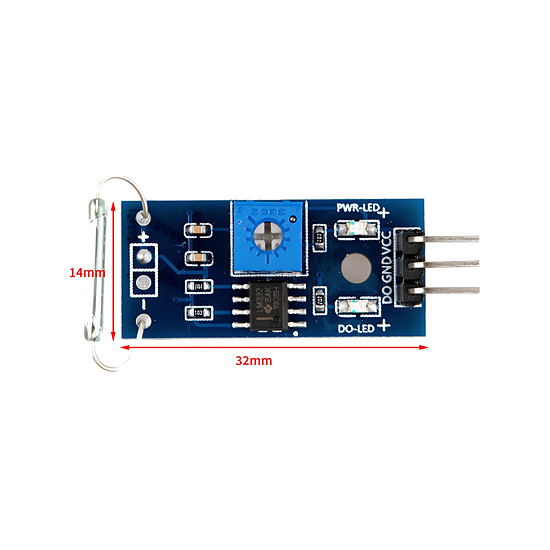

Small board PCB size: 3.2cm x 1.4cm

Wide voltage LM393 comparato

PBX, photocopiers, washing machines, refrigerators, cameras, Disinfection cabinet, door, window magnetic, electromagnetic relay,

electronic weighing, level meter, gas meter, water meter and so on have been a very good application.

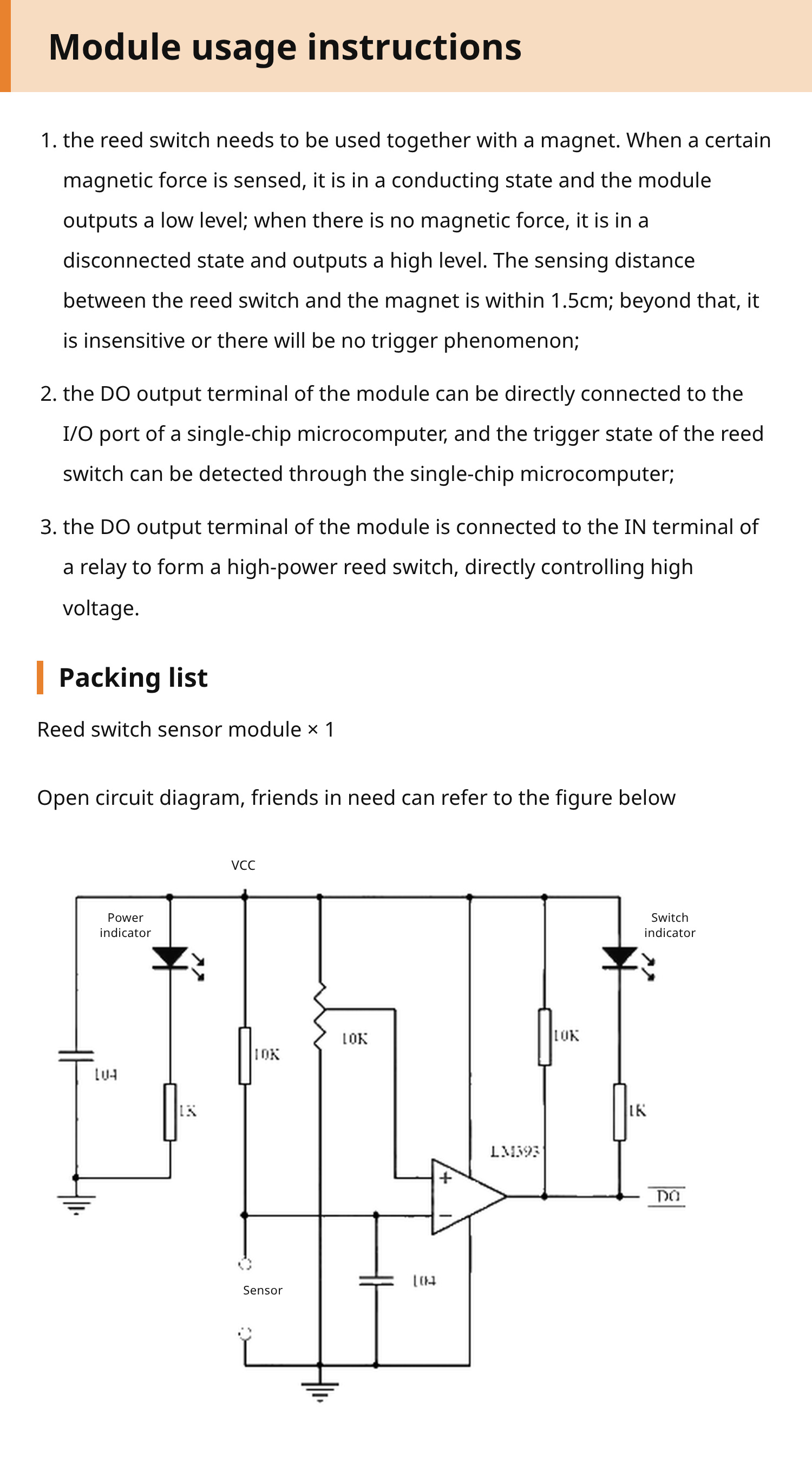

Module using the instructions:

Dry reed and the magnet with the use, to a certain magnetic induction will be presented to the conduction state, the module output low,

no magnetic force, and the OFF state, the output high, reed the magnet sensing distance of 1.5cm beyond insensitive or will trigger phenomenon;

module DO output of the microcontroller the I / O ports directly connected to the reed switch triggering state can be detected through the microcontroller;

Connected to the module DO output relay IN the end, composed of high-power reed switch, high voltage direct control.
