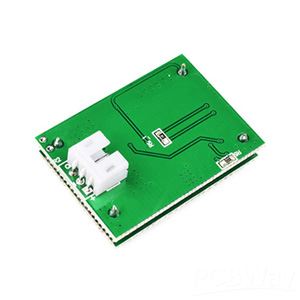

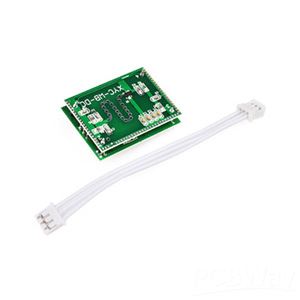

ZAVE Microwave radar sensor module 5.8GHZ DC type
XYC-WB-DC is an automatic sensing control product of Doppler radar technology, featuring high sensitivity, long sensing distance, strong reliability, large sensing angle, and wide power supply voltage range. It is widely used in all kinds of human body induction lighting occasions, anti-theft alarm occasions.
product parameters:
1. Module working voltage: 3.5-16VDCo
2. Standby quiescent current: 33mA
3. Transmitting power: 32mW
4. Working temperature environment: -40°~+80°
5. Size: 23*32MMO
6. Trigger mode: Repeat trigger (default)
7. Output signal: TTL level, high effective; high level 3V, low level 0V
8. Detection angle: 360° (spherical surface) without dead angle
9. Detection distance: 5-8 meters. The default setting is about 7 meters
10. Working delay: about 1 second. (The delay is proportional to the resistance of R6. The default resistance is 2k and the delay is 1 second. If the resistance is not welded, the open circuit delay is about 30 seconds).
product features:
Microwave induction uses a planar antenna to transmit and receive echoes, and the switch is an active sensor. The sensor emits high-frequency electromagnetic waves and receives their echoes. This sensor detects changes in the echo or even small movements within the true detection range, and then the microprocessor triggers and executes instructions. The signal can penetrate doors, glass panels and thin walls. Note: The detection effect of people or objects moving towards the sensor is good! This product has strong anti-interference ability and is not affected by external environmental factors such as wind and heat.
Applications:
Security, intelligent lighting, human body sensing toys, industrial automation control, automatic induction electrical equipment, battery-powered automatic control, etc.
