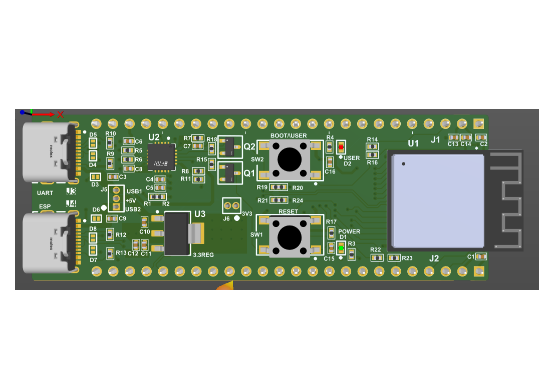

This compact development board features an ESP32‑S3 module paired with dual USB Type‑C ports, providing separate interfaces for USB‑to‑Serial (UART) and USB‑OTG functionality. The layout includes a clean 2‑row header design for easy prototyping and breadboard compatibility.

At the center of the board is the main power‑management and interface circuitry, including voltage‑regulation components, passive filtering, and USB data‑line conditioning. Two push‑buttons—BOOT/USER and RESET—offer convenient access for flashing firmware and controlling device operation. Indicator LEDs are positioned near the buttons for power and user‑defined signaling.

The right side hosts the ESP32‑S3 wireless module, integrating Wi‑Fi and Bluetooth LE connectivity along with antenna circuitry. Additional GPIO pins, regulators, labeled test points, and discrete components surround the module to support stable operation and expansion.

Overall, this board is designed for developers who need a versatile, USB‑ready ESP32‑S3 platform ideal for IoT, automation, and embedded system projects.
