DRV8231A_breakout
PCB Description:

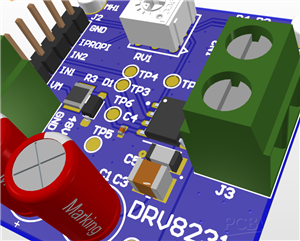

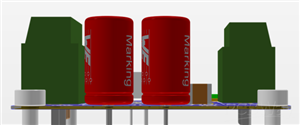

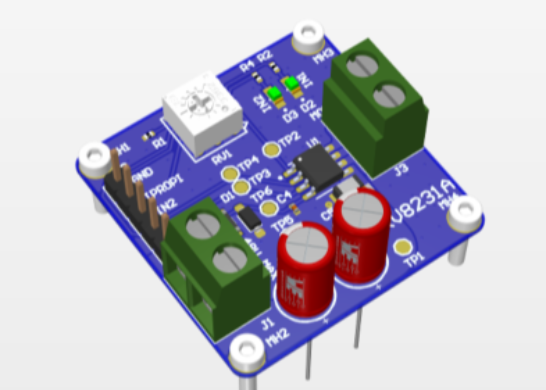

This PCB is a compact brushed DC motor driver board based on the TI DRV8231A H-bridge motor driver. It supports bidirectional motor control via IN1/IN2 logic inputs and includes current sense output (IPROPI) for monitoring motor current. The board accepts a motor supply voltage up to 18 V (VM) and provides screw terminals for both power input and motor output. An onboard trim potentiometer allows adjustment of the current limit. Test points are included for debugging and validation.
Mechanical Details:
Board size: 35 × 35 mm
Mounting: 4 × M2 mounting holes, one in each corner
Intended Use:
Low-power DC motor control for robotics, actuators, and embedded systems where compact size and current limiting are required.
