Tools, APP Software Used etc.

KiCad 9.0

Description

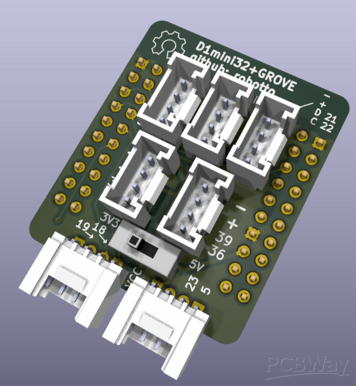

D1 mini ESP32 grove shield

This is a base shield that lets you use the D1 mini ESP32 board with the Grove system connectors for fast and easy prototyping. Two sockets are connected to the default I2C pins. Use 2x10 row pass-through pin headers (like these) for access to all pins with dupont wires.

The switch sets the VCC of the grove connectors to either 3.3V or 5V

Links to parts:

Switch: Any three pin SPDT on-on switch will do. I suggest SLW-883935-2A-D . Alternatively just solder a bridge between center pin and either voltage pin.

Grove sockets: https://a.aliexpress.com/_Ez26KX2 (get 5 of the "straight needle" variant and 2 of the "bent needle" variant per board)

2x10 Pass through pin headers: https://a.aliexpress.com/_Eu7mSEC

Schematic and Layout

GitHub repository

https://github.com/Robotto/D1-mini-grove-shield/

Download Gerbers Download BOM(Bill of materials)

Mar 05,2026

389 views

D1 mini ESP32 grove shield

2 Layers PCB 31.6 x 37 mm FR-4, 1.6 mm, 1, HASL with lead, Purple Solder Mask, White silkscreen

Unofficial grove base shield for the Wemos D1 mini ESP32 board. https://github.com/Robotto/D1-mini-grove-shield
