The Crius “Vertical Infinity Control” USB MIDI Controller consists of 8 potentiometers with which we can control the parameters of the VST-Plugin or the DAW we play music and 8 RGB LED Rings around the perimeter of each potentiometer

that illuminate and change color depending on the position of the corresponding potentiometer.

• MIDI Controller is an electronic device for the operating parameters and control VST-Plugin ( V irtual S tudio T echnology) or program DAW ( D igital A udio W orkstation) which play and ichorgrafoume music through keys, potentiometers, touch screens and a multitude of sensors.
• DAW programs are available for PC (Windows, MacOS, Linux) for Tablet and Smartphone.
• * ( ATTENTION !!! It does not work independently and this is because it does not affect the audio signal but uses the MIDI communication protocol to communicate with the device we have connected it).
• MIDI Controllers are mainly used in music production programs to control VST-Plugins such as musical instruments and effects. However, they are also used in video editing and for the control of professional lighting systems.
• A potentiometer is an analog electronic component that can give us many values as opposed to a simple on-off switch that gives us only two values on and off respectively. It is essentially a variable resistor commonly used as a voltage divider such as a dimmer. to adjust the brightness of a lamp or a volume change washer on an amplifier.
• The MIDI protocol was created in 1982 for communication and synchronization between electronic musical instruments, computers and other electronic devices regardless of the manufacturer.
• MIDI does NOT transmit audio messages other messages that contain information such as the tone, volume of a note, tempo of a track, etc.).

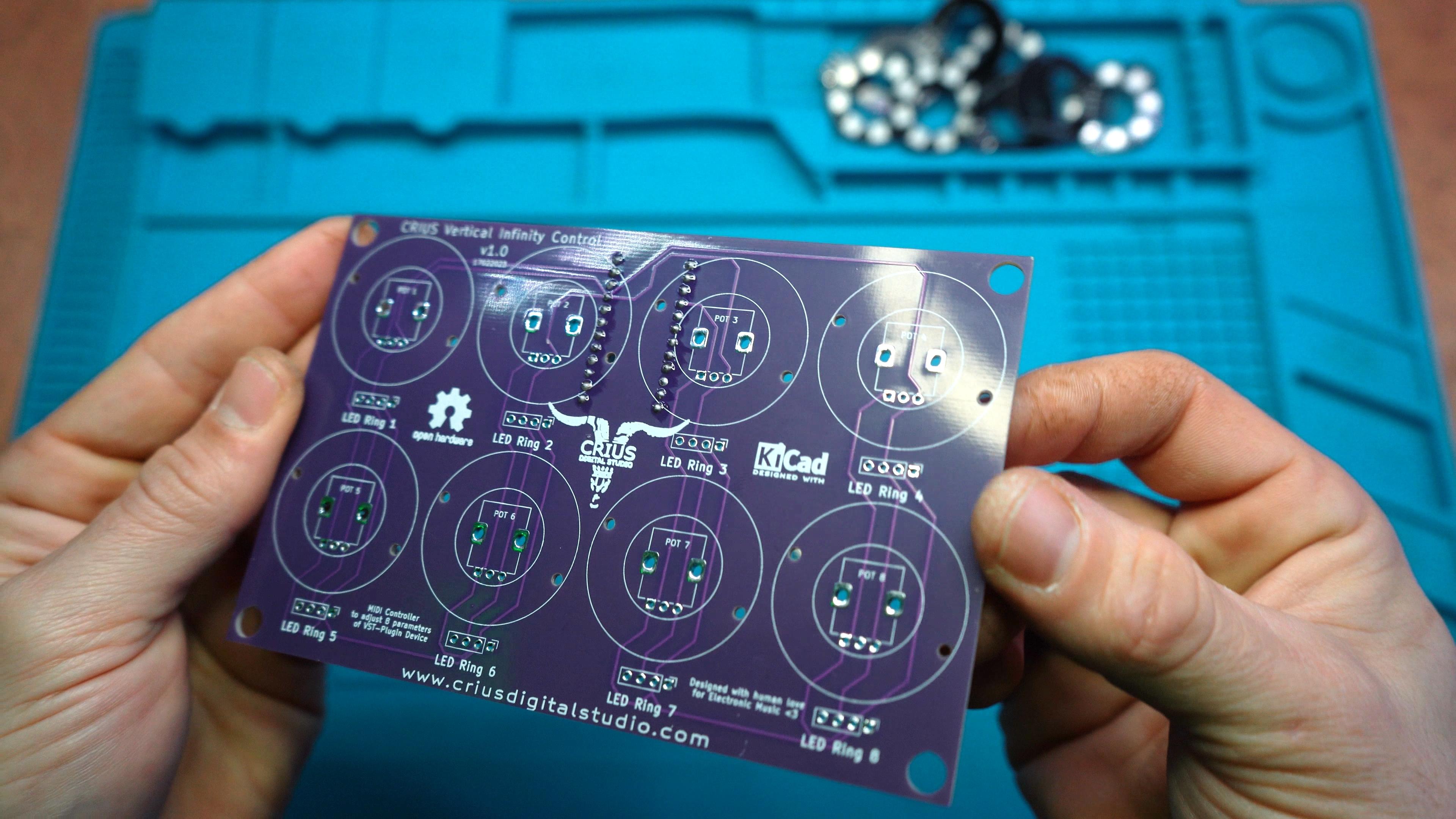

For the PCB board pcb manufacturing process I chose PCBWay which is sure to find quality and economical boards with the features and color I want.

You can order the Crius Vertical Infinity v1.0 PCB at the following link:

www.pcbway.com

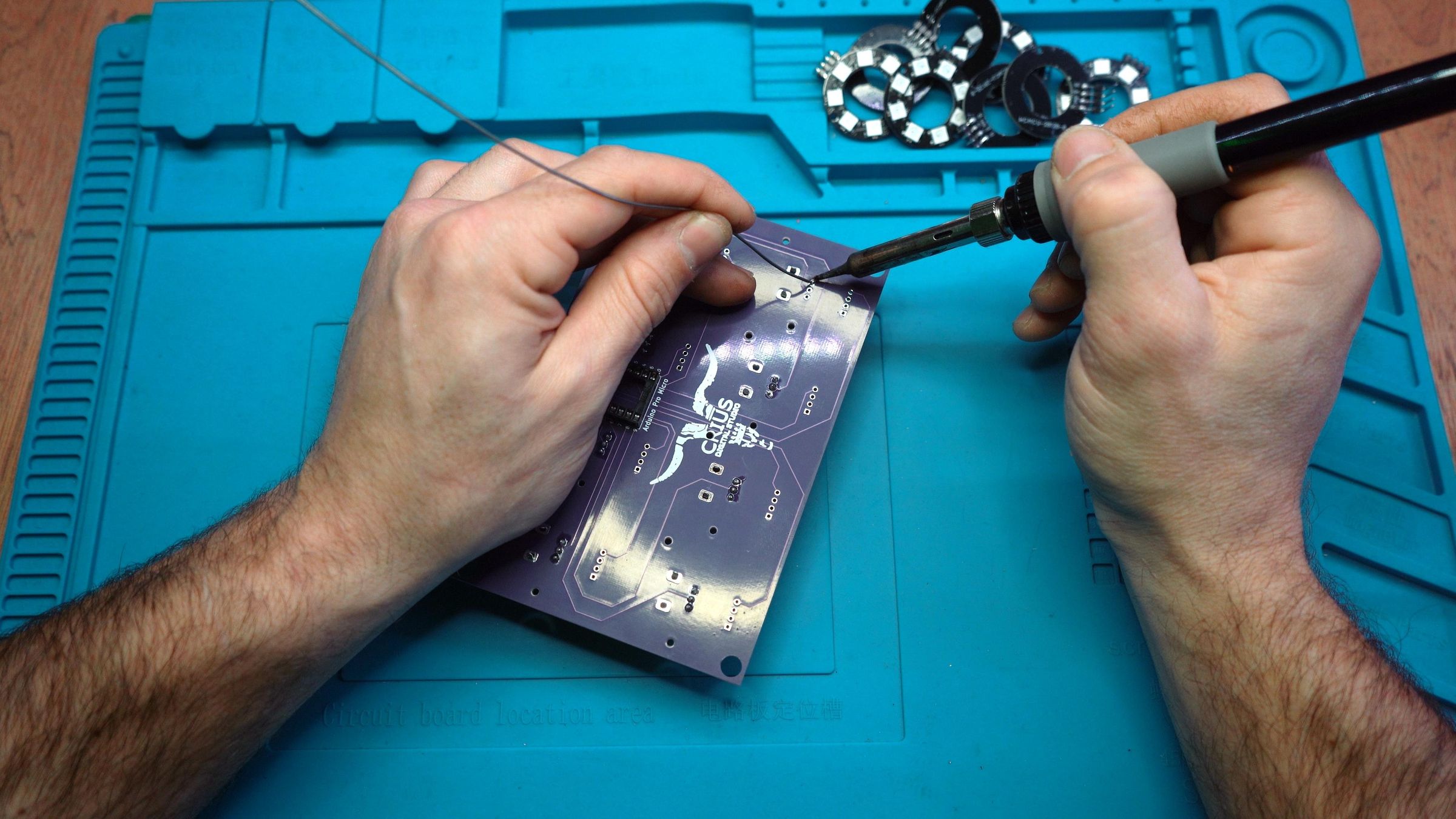

Solder the Header Pins to the Led Rings

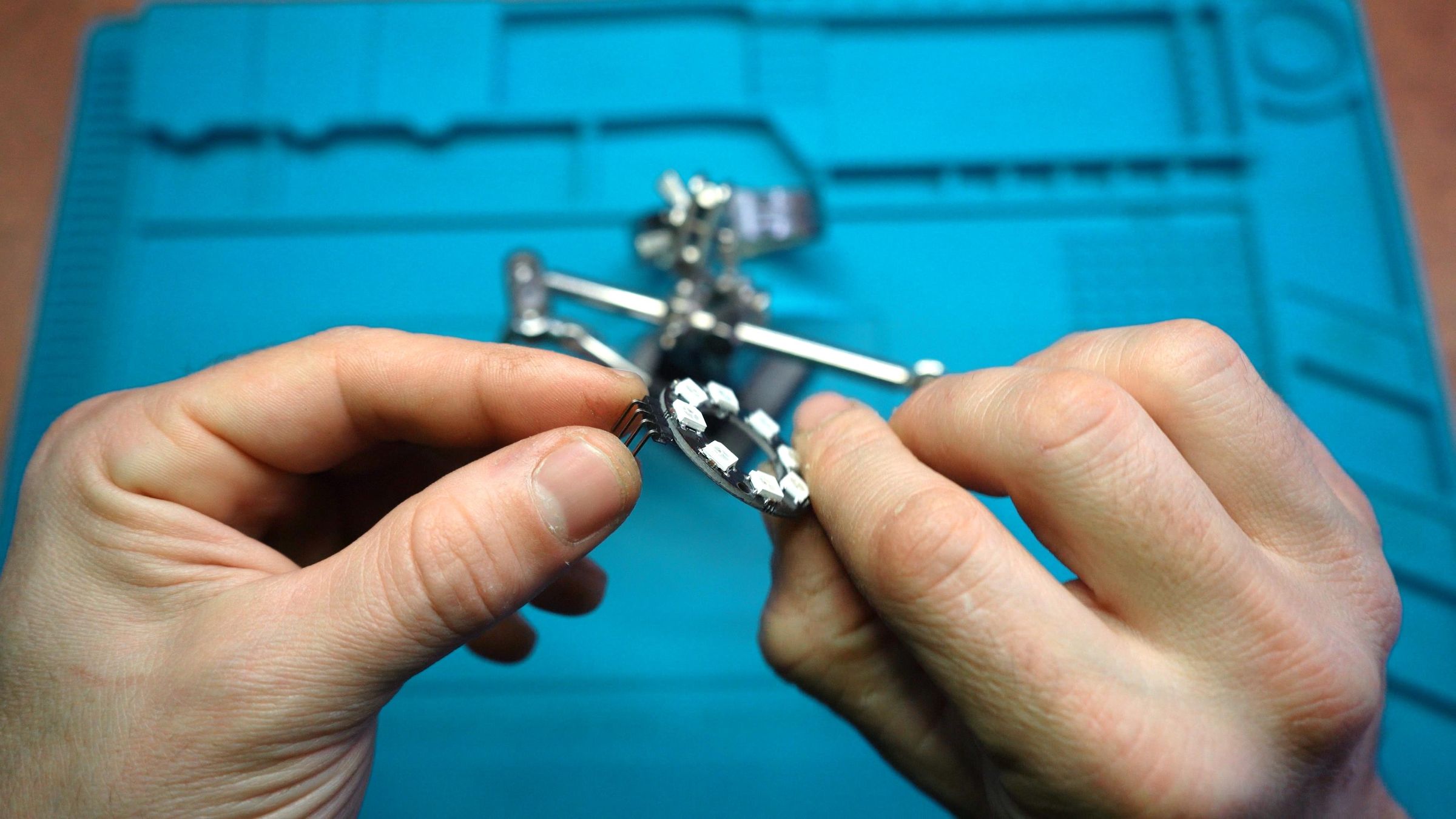

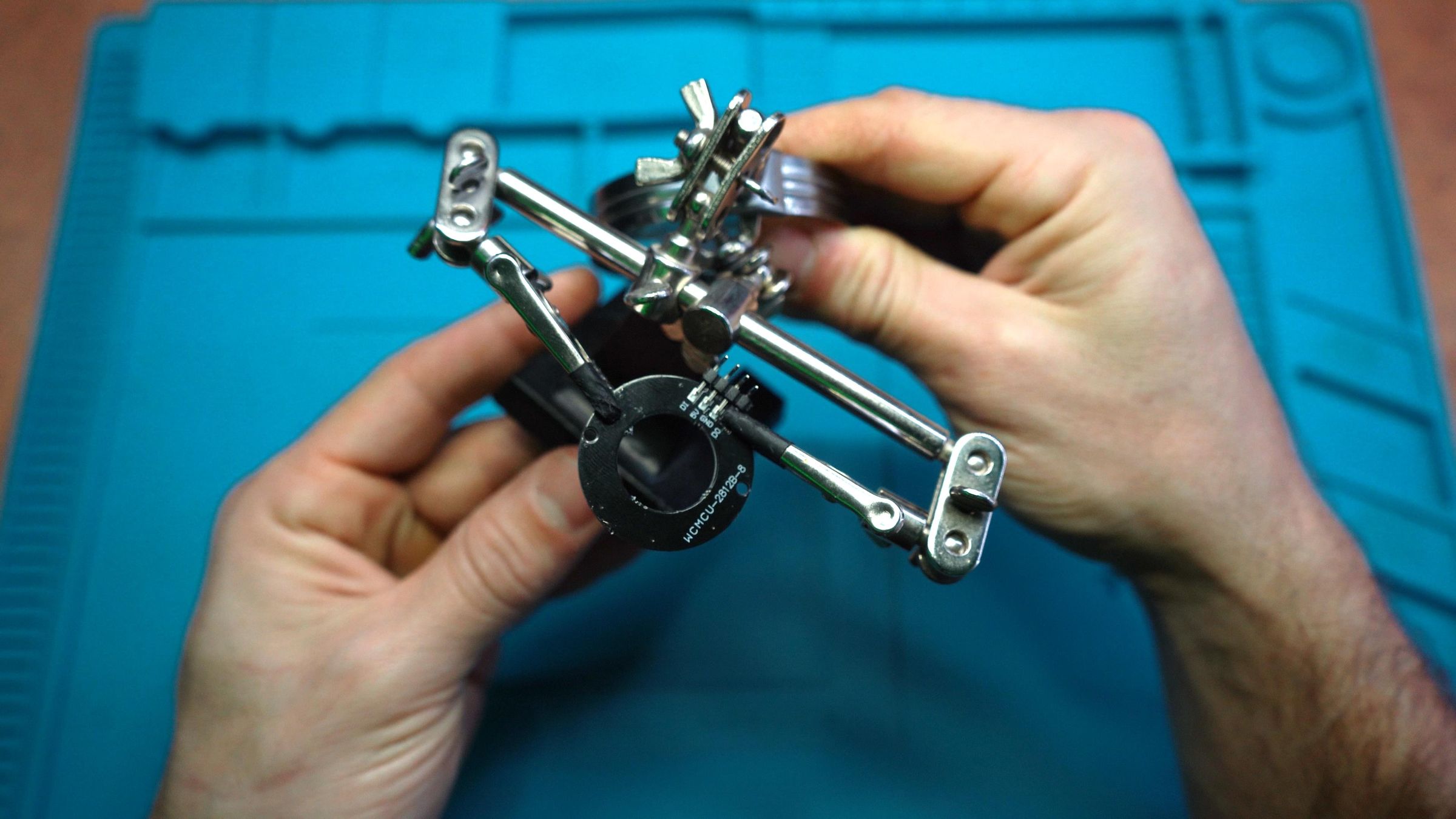

I'll start by soldering the angled male header pins to the Led Rings

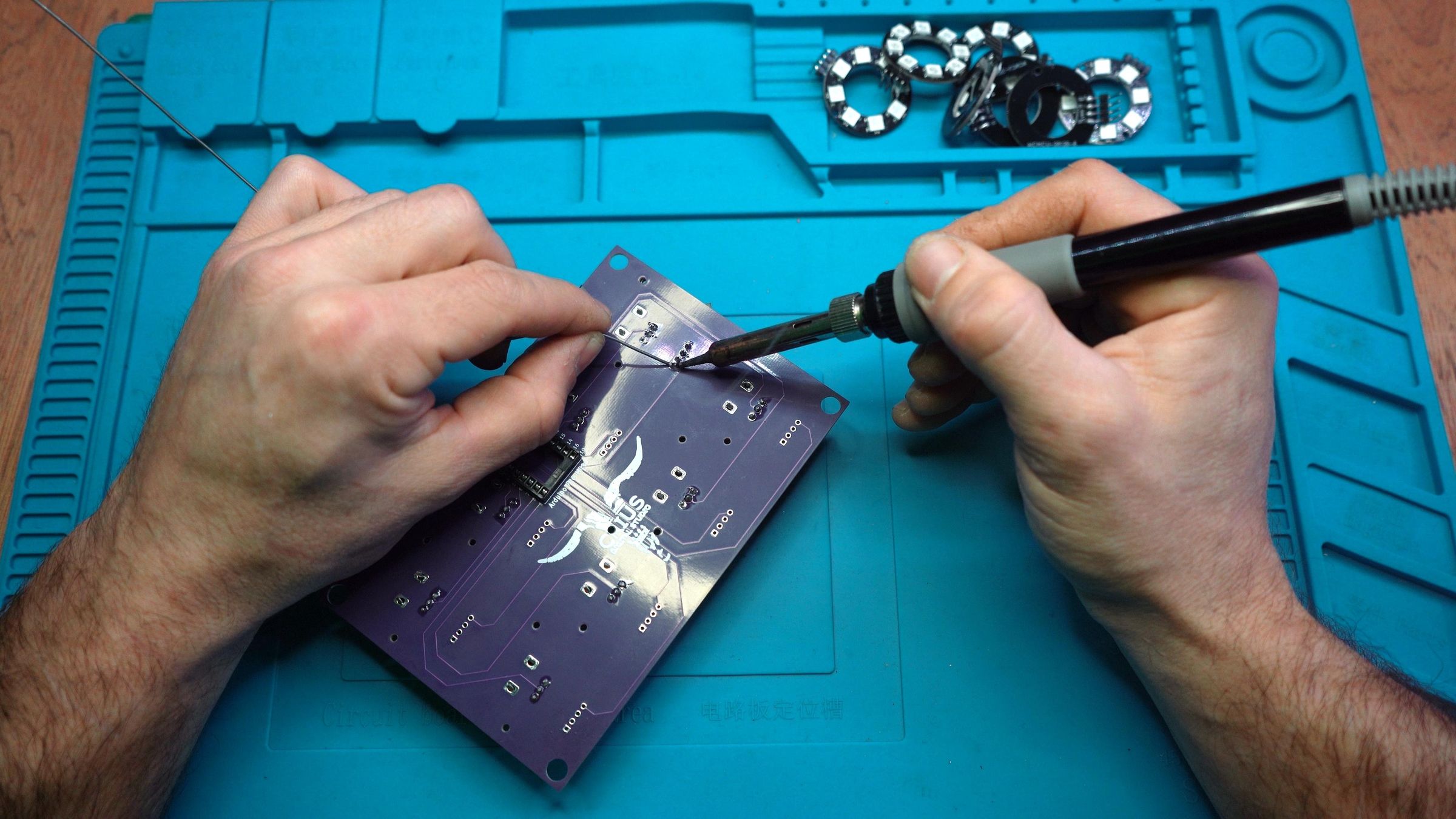

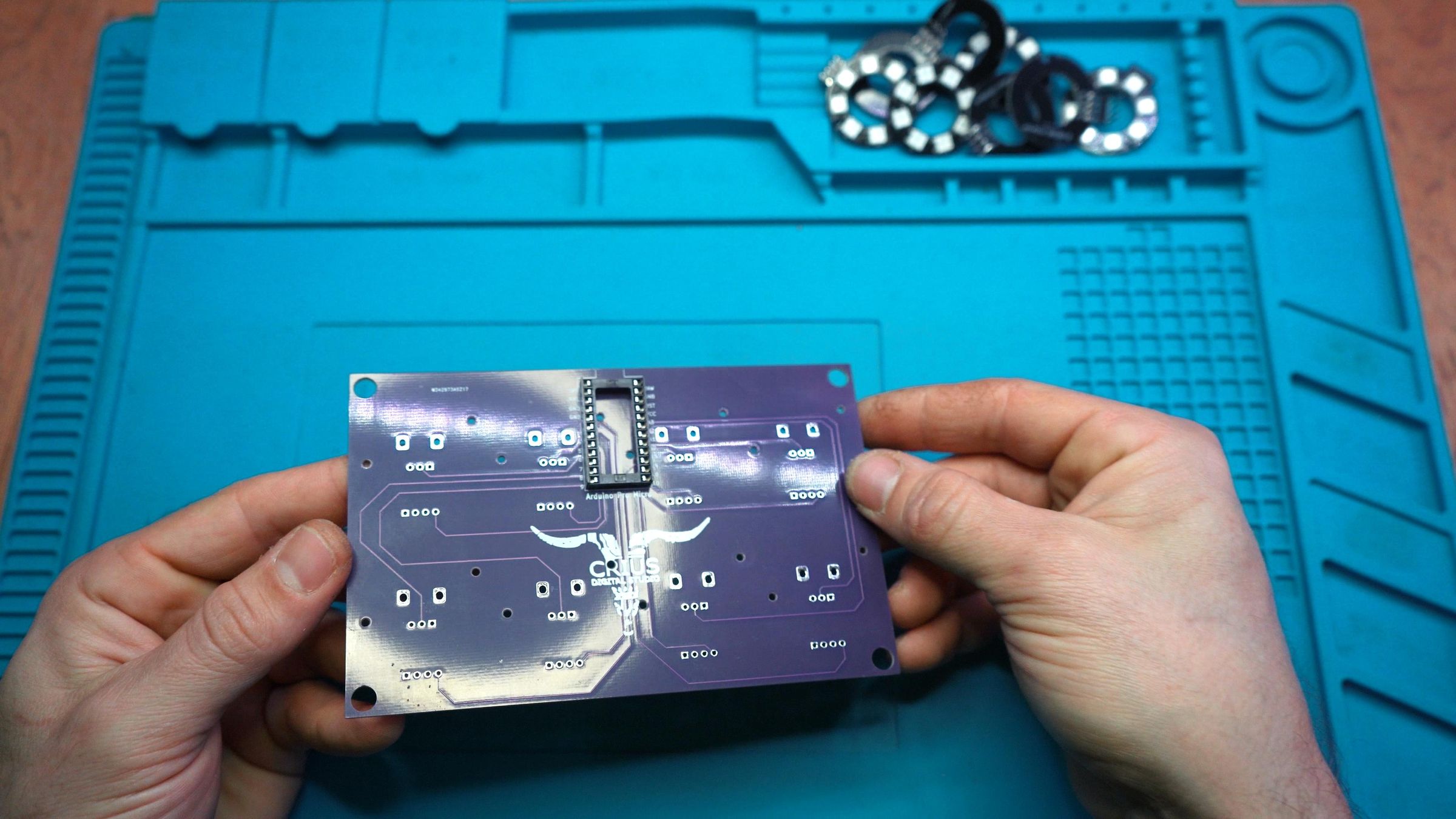

Solder the Arduino

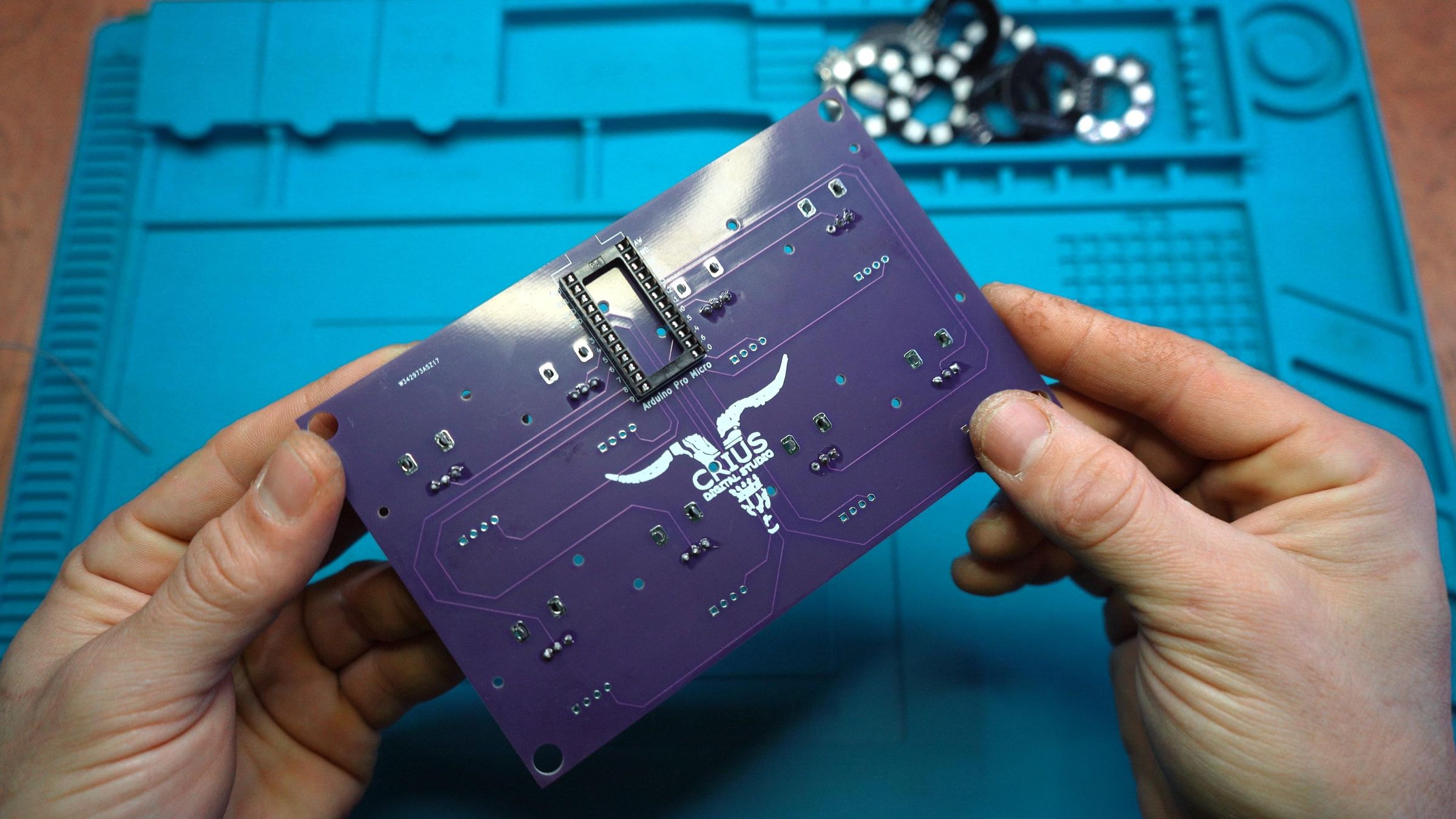

Next I will solder the Arduino on the PCB or optionally the 24-pin DIP Socket in order to be able to replace the Arduino in the future.

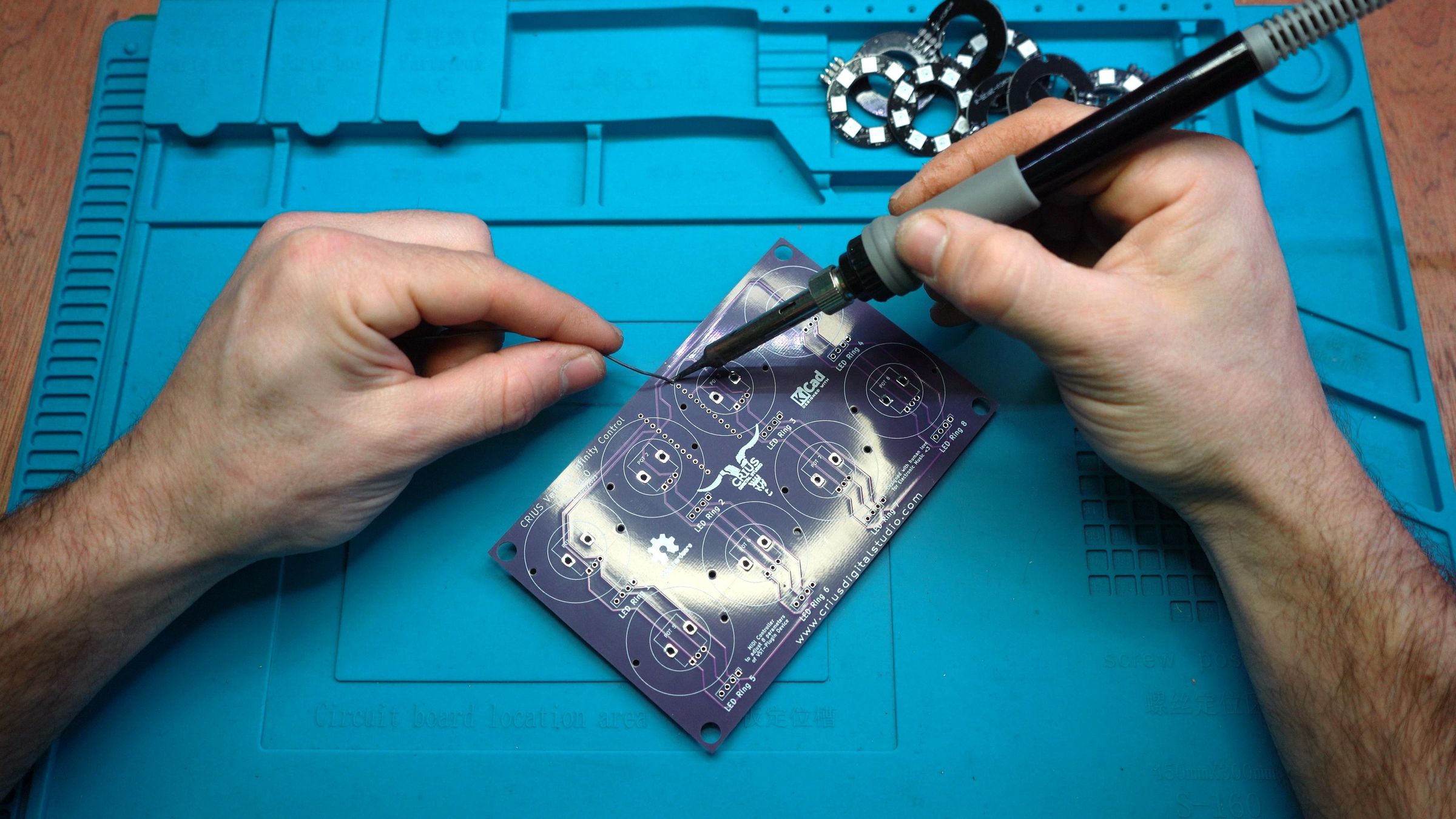

Solder the Potentiometers

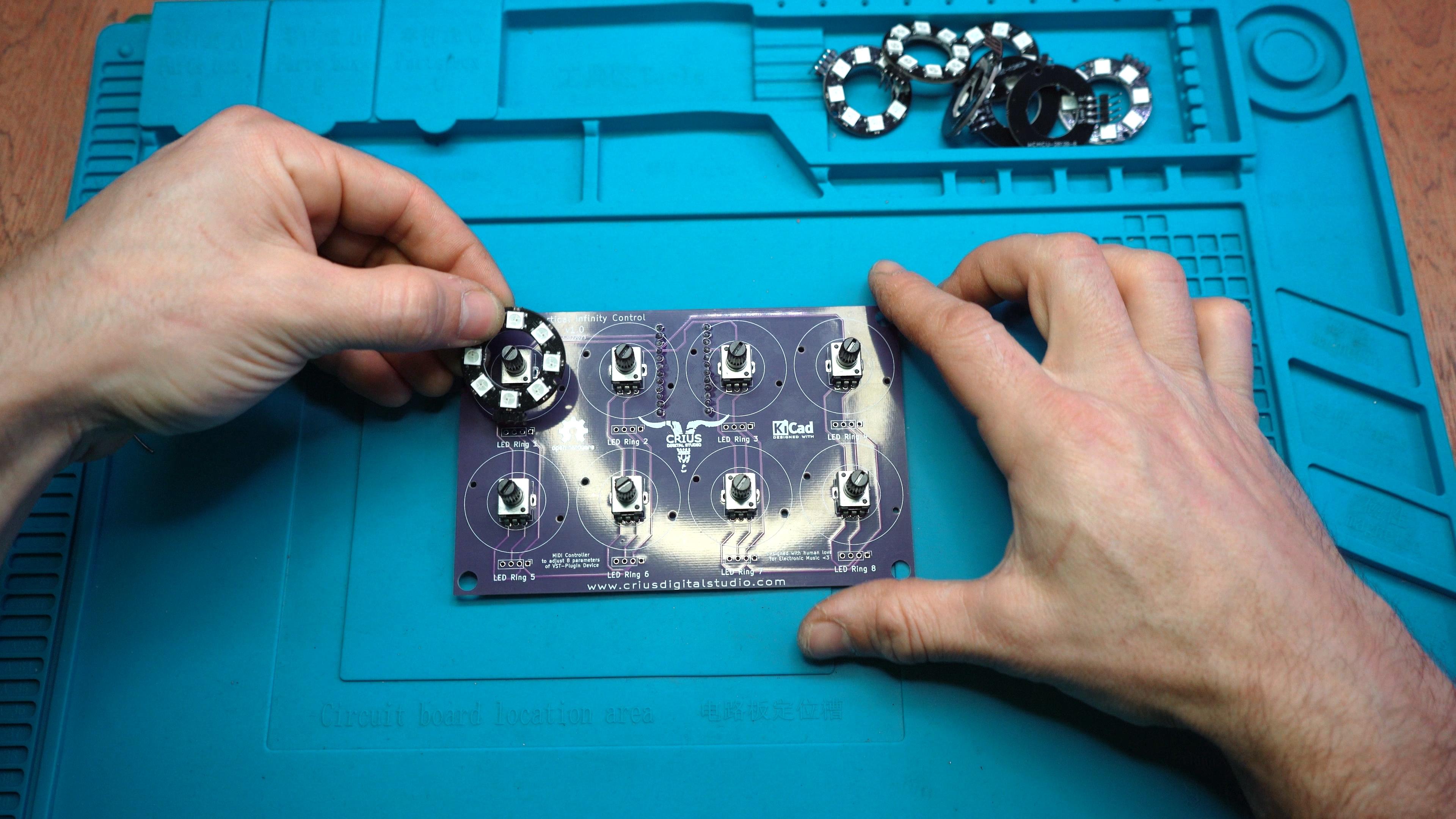

Now I will solder the 8 potentiometers on the PCB board.

Solder the Led Rings

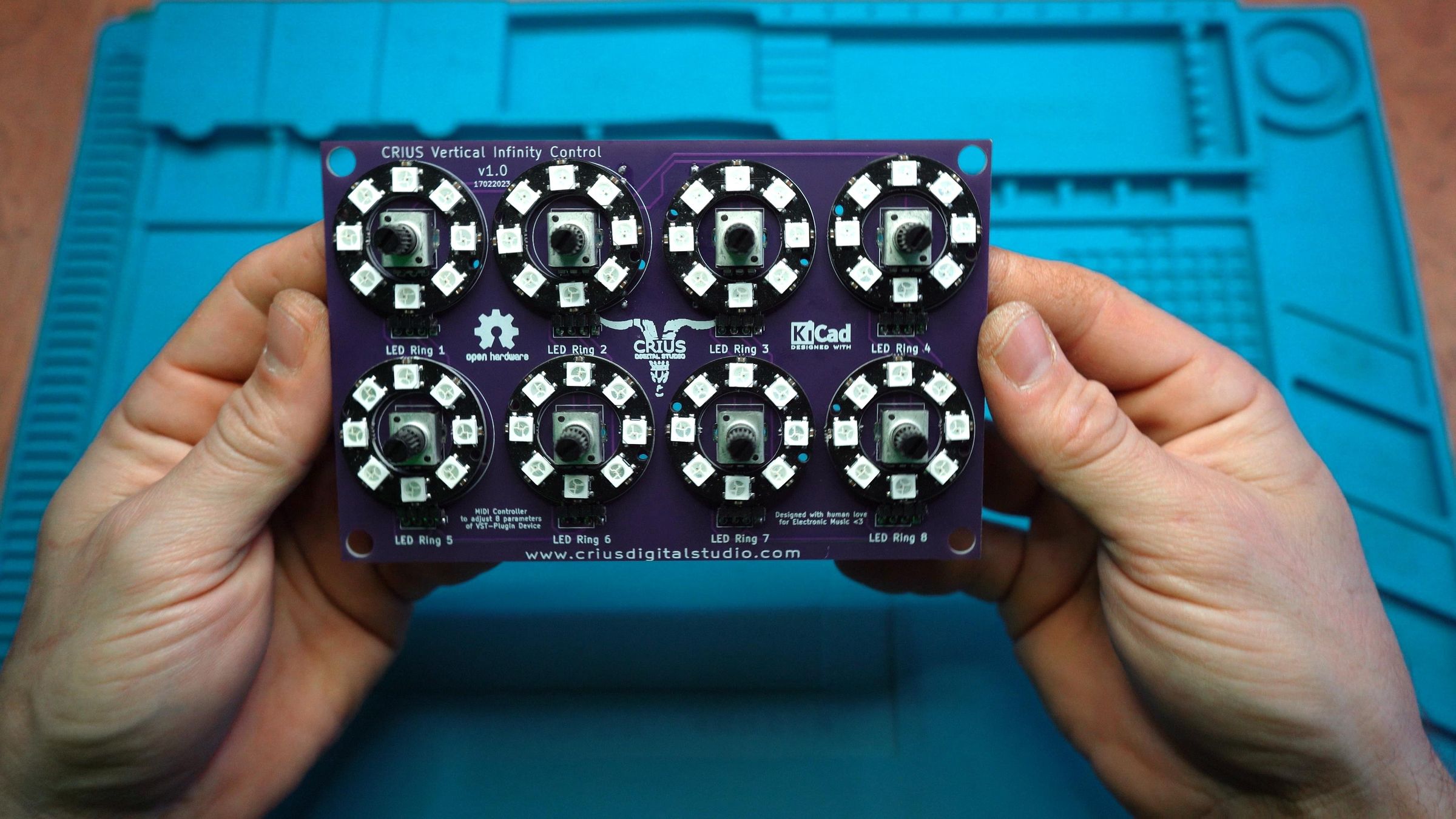

I will solder the WS2812B RGB Led Rings to the PCB board.

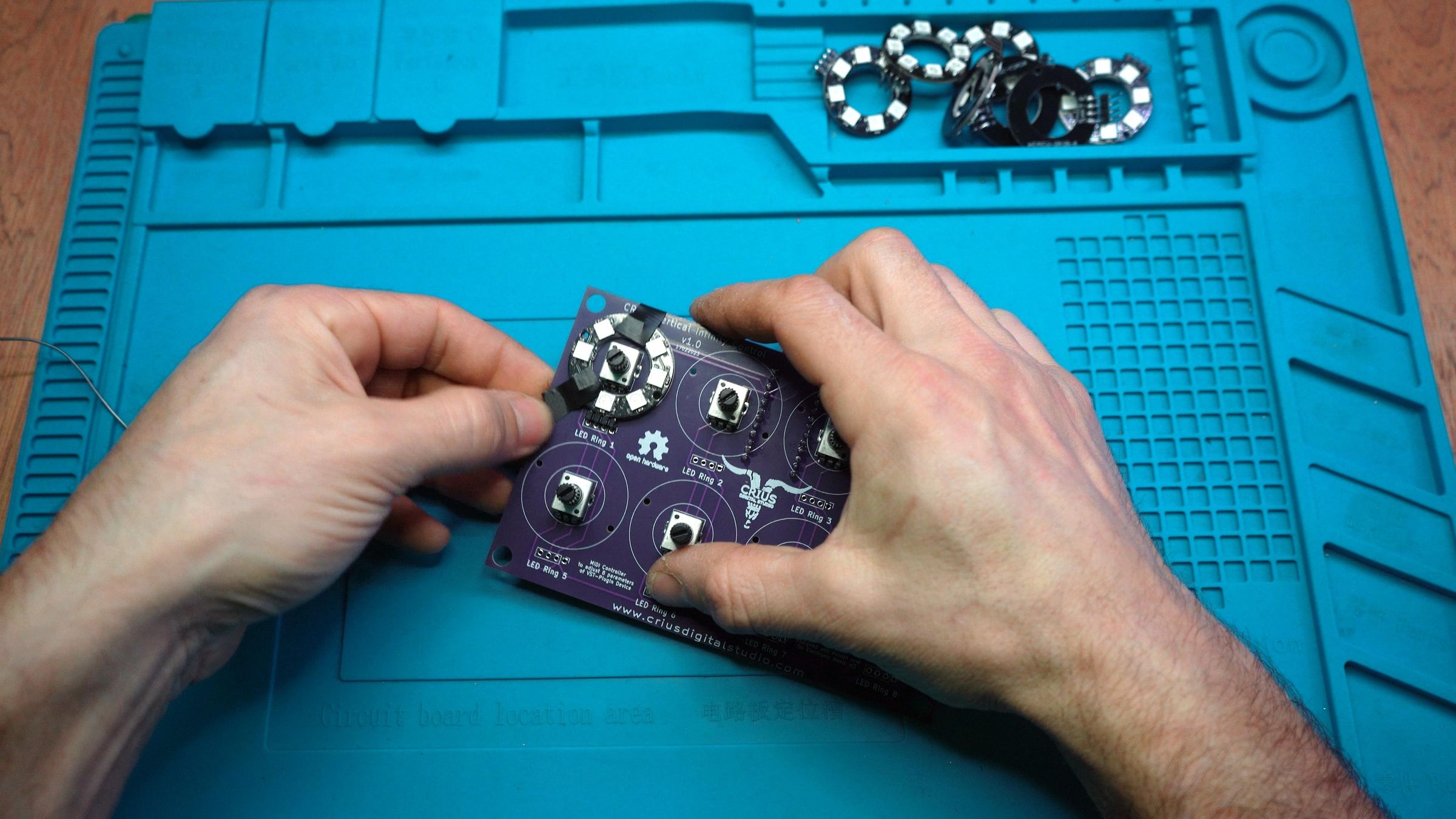

I will use some tape to stabilize the Led Rings so that I can turn the PCB upside down and solder the pins on the back.

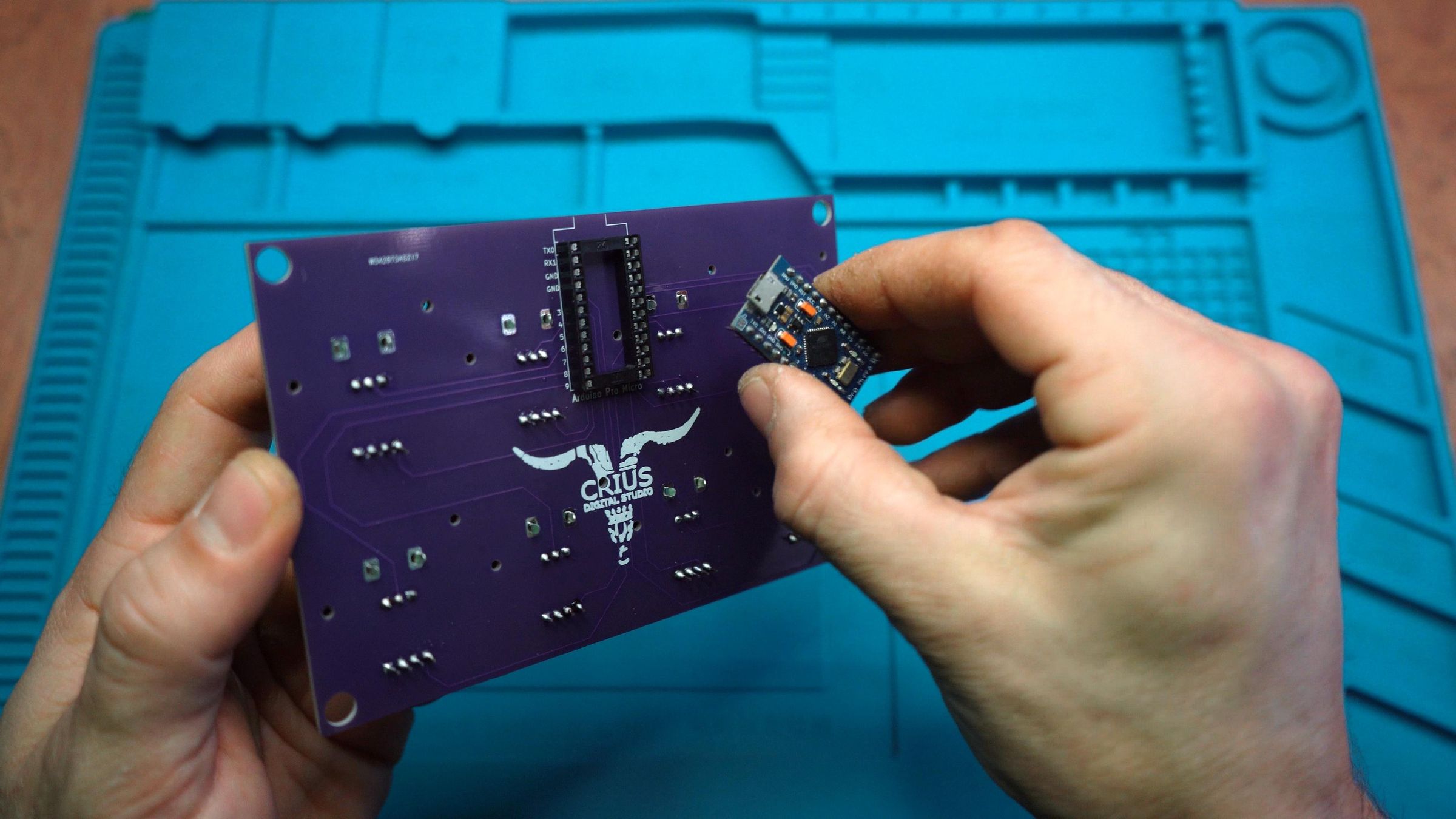

Place the Arduino

Place the Arduino Pro Micro on the socket as shown above if you didn't solder it directly on the PC at Step 2.

Upload the Code to the Arduino

To upload the code to Arduino we need to download the Arduino IDE from the Arduino site: https://www.arduino.cc/en/software

After you install the Arduino IDE, open the Crius_Vertical_Infinity_Control_v1.0.ino file so we can Upload the code to the Arduino

We need to download the Control Surface library from Github

and install it to the Arduino IDE from the menu Sketch -> Include Library -> Add .Zip Library

4. Then we have to select Board from the menu Tools -> Board -> Arduino Leonardo

5. and finally the Port from the menu Tools -> Port -> the port we have connected the Arduino

Now we can click Uploadand upload the code.

Order the PCB

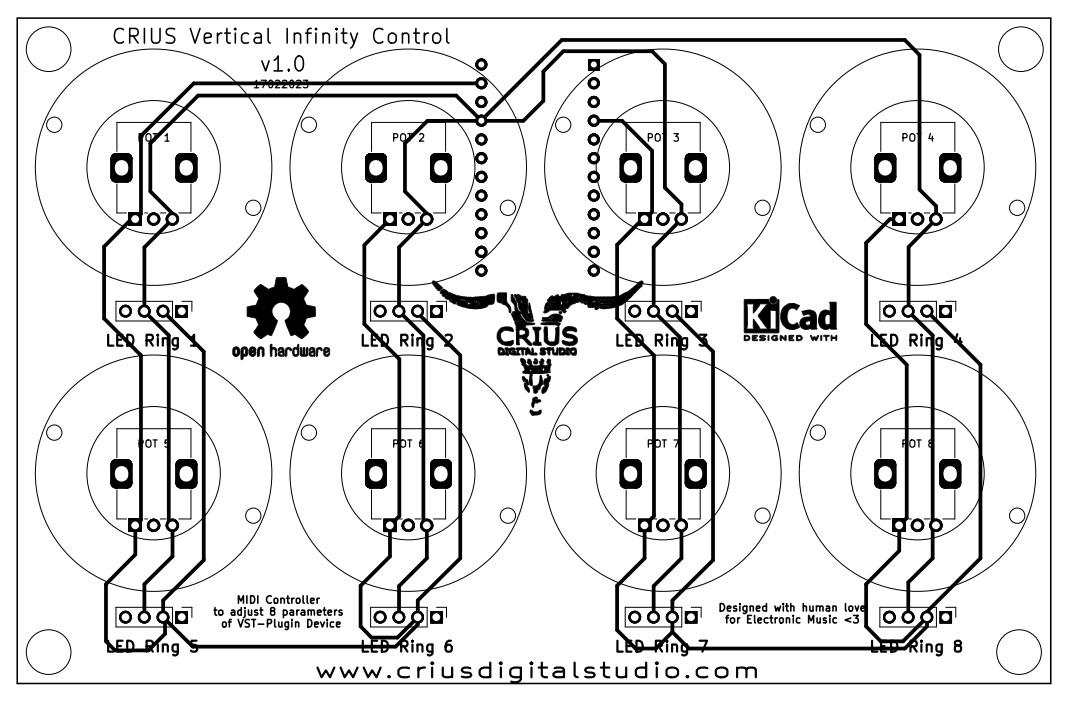

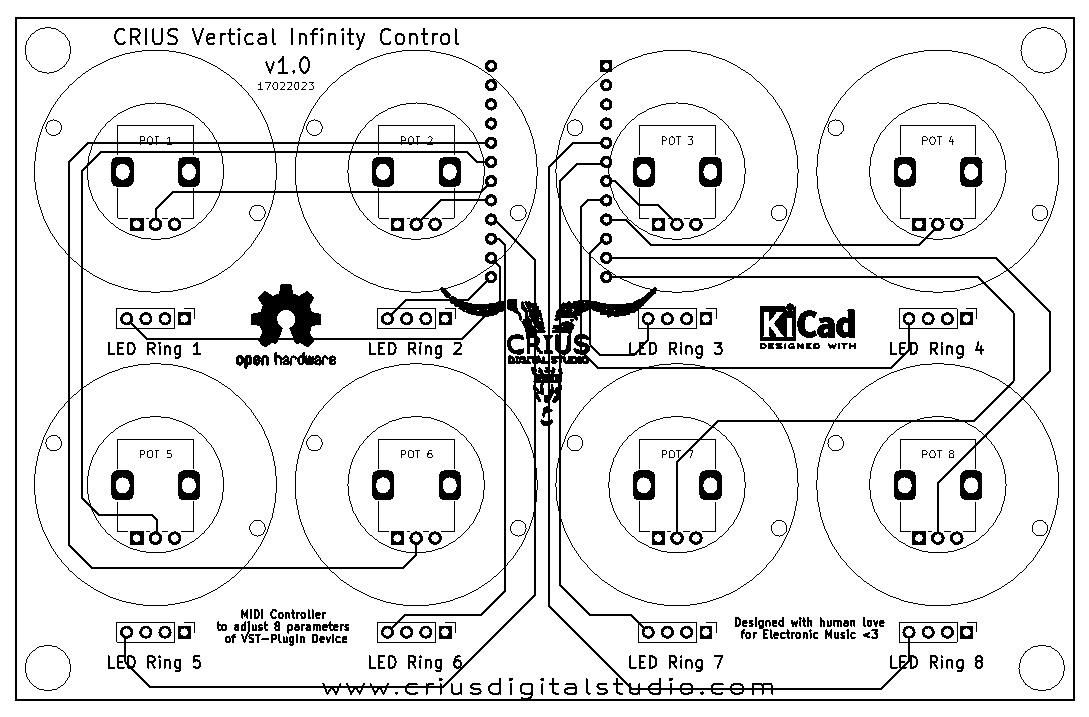

Here you see the PCB design from Kicad

For the PCB board pcb manufacturing process I chose PCBWay which is sure to find quality and economical boards with the features and color I want.

You can order the Crius Vertical Infinity v1.0 PCB at the following link:

www.pcbway.com

To order the PCB from PCBWay you will need the Gerber files

3D Print the Case

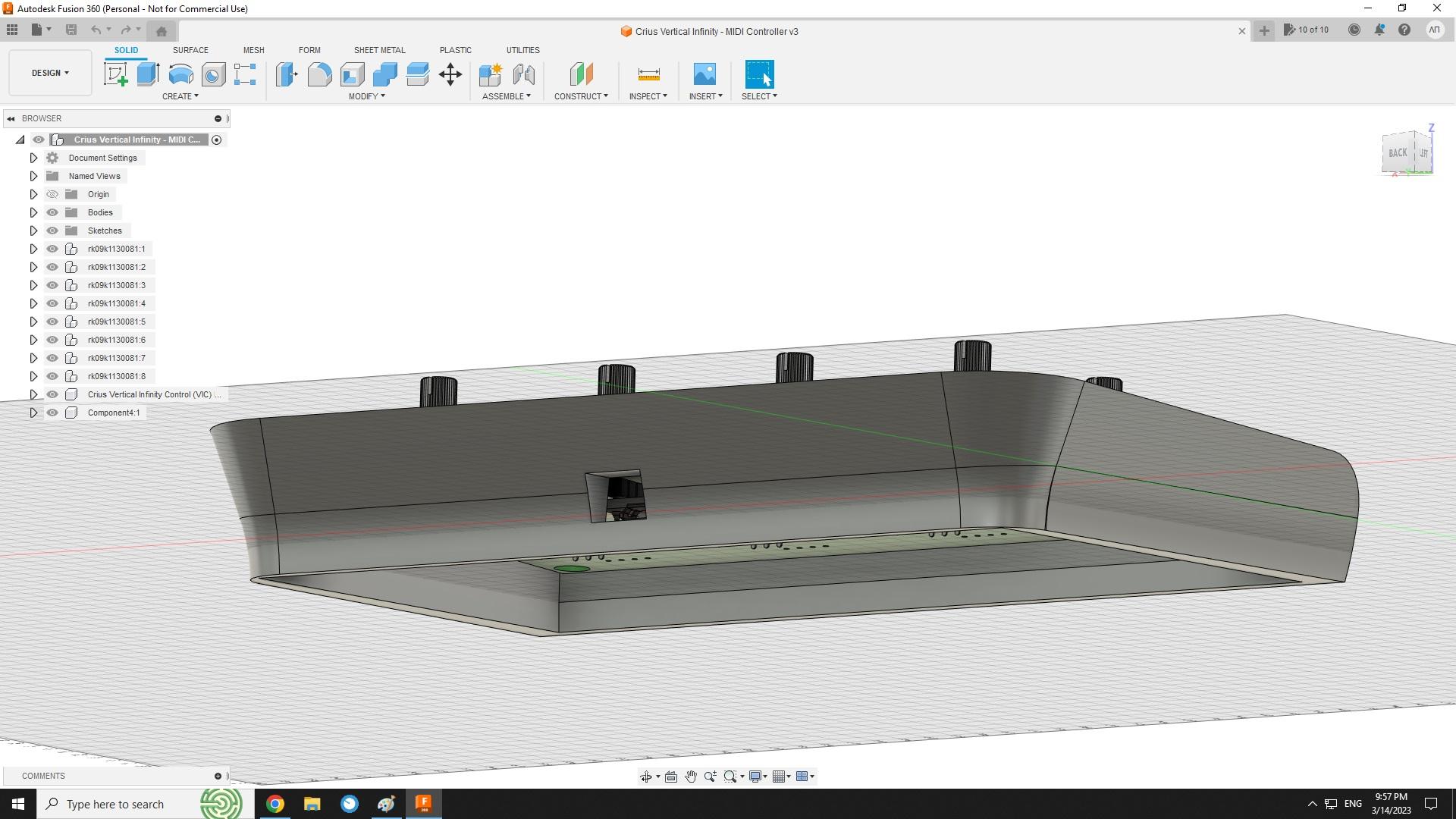

I used Autodesk Fusion 360 to design the case because its free for personal use , easy to use and incudes some awsome features like to import a 3D PCB Design from KiCad in our case , so I can build the case around the PCB which make the whole construction feel more durable and professional

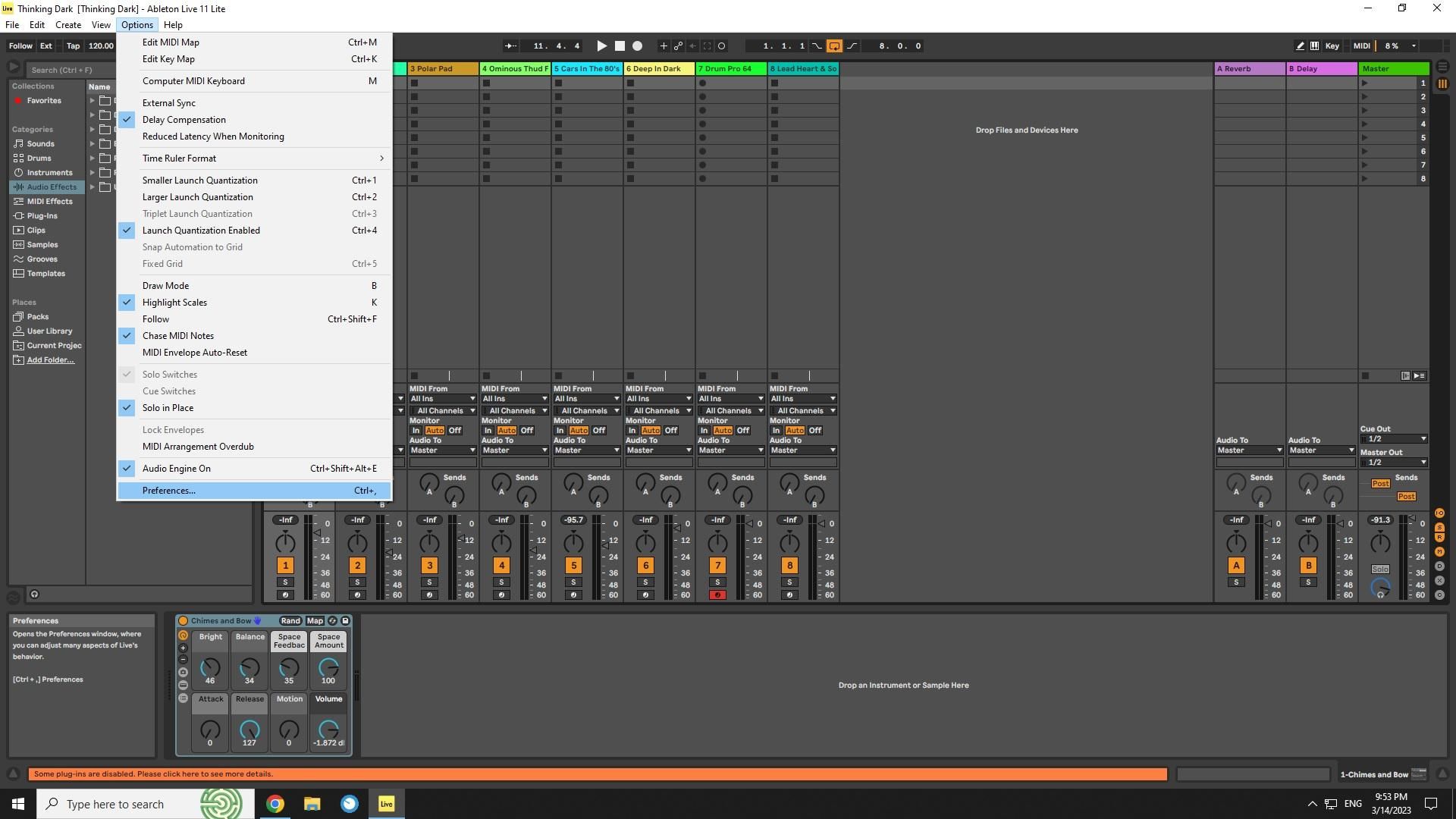

ABLETON Setup

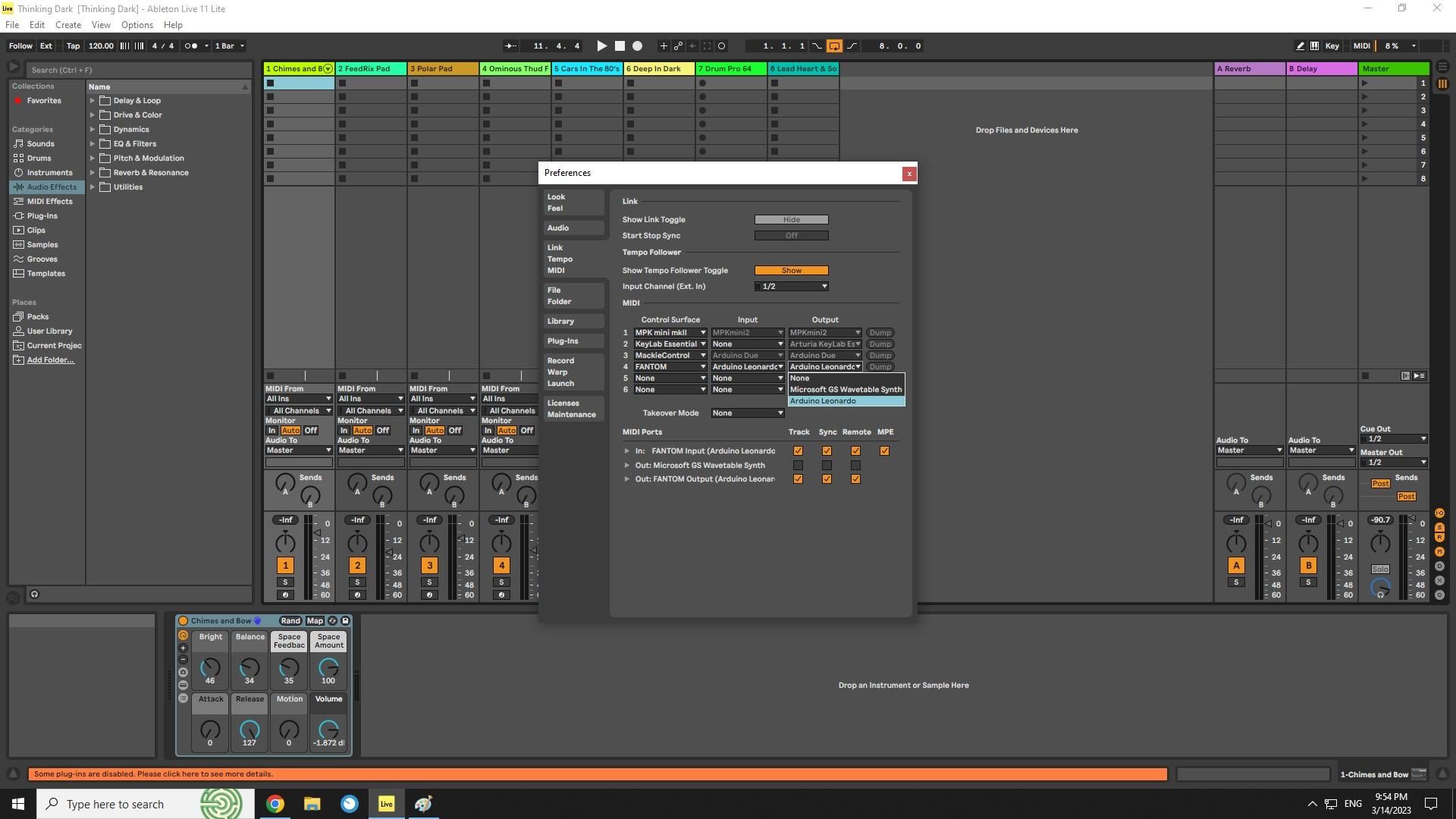

Here the only thing we need to do is to connect the Crius Vertical Infinity Control with our computer , open the Preferences menu and select from the MIDI tab :

Conrol Surface - Fantom

Input - Arduino Leonardo

Output - Arduino Leonardo

We are READY to go!

I hope you enjoyed the proccess and made one for your self!
