PinHeader 1x04 P2.54mm Vertical |
x 1 | |
|
|
2.54mm Pin Header Male Single Row 14 Pin 2.54mm Round Pin Connector |
x 2 | |
|
A-CCS 032-Z-TAssmann WSW Components
|
x 1 | |
|
|
EPROM AM29F040B PLCC-32 |
x 1 |
C128/C64 U32 Kernal-Switcher Adapter for Switchless 8x Multi-Floppy Speeder with 32KB/512KB RAM Expansion for the Commodore C128 DCR

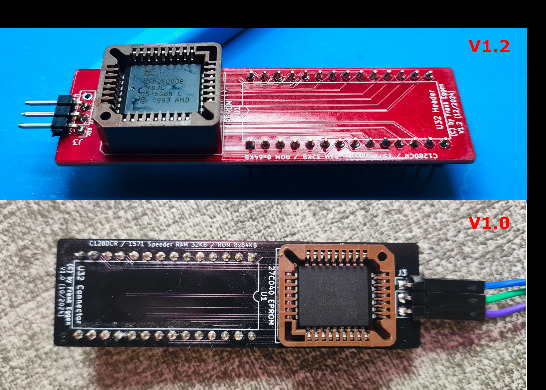

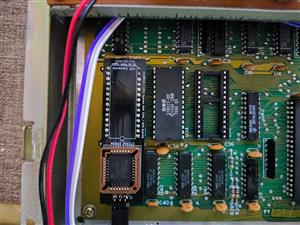

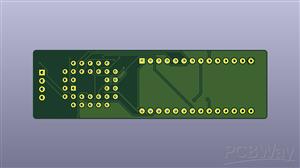

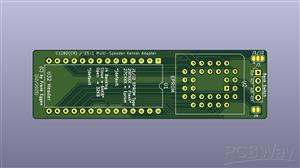

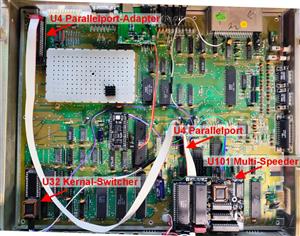

The Kernal-Switcher Adapter is a addon for the 8x Multi-Floppy-Speeder 32KB/512KB RAM Expansion for the C128CDR. The Kernel Switcher Board is an adapter board for a 512 KB EPROM (27C040 or 29F040) for the 8x 64 KB kernel ROM banks. It is installed into the U32 socket of the C128DCR. The switcher has an A16/A17/A18 connection that must be connected to the Multi-Speeder Board. The Multi-Speeder Board synchronizes the switching of the floppy drive kernel with the corresponding C128/C64 kernel ROM bank. This allows the simultaneous switching of the 1571 kernel and the C128/C64 kernel via DOS commands. The same ROM banks are always activated.
Projectpage on Github: https://github.com/FraEgg/commodore-c128dcr-1571-switchless-floppydrive-8x-multi-floppy-speeder
Shared Project:
C128/C64 U32 Kernal-Switcher Adapter for Switchless 8x Multi-Floppy Speeder with 32KB/512KB RAM Expansion for the Commodore C128 DCR
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
