Ashwing64 - Mechanical keyboard
64 Key wireless keyboard, this is the second iteration of the Ashwing keyboard, with added wireless support and more compact design.
Writeup about this build and my review on transparent PCB's with PCB way can be found here: https://gzowski.co.uk/ashwing64-build/

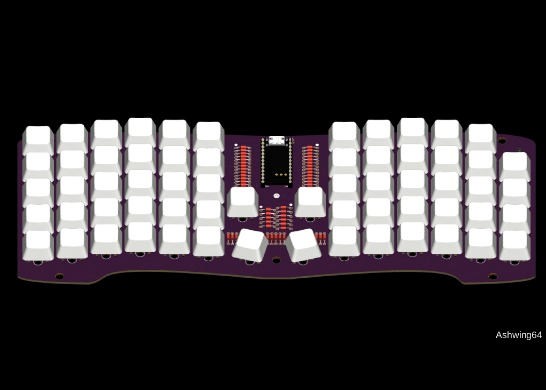

64 Key layout
5x underside LED's for under glow (no backlit keys)
Similar design to the Ashwing66
Designed for use with a Nice!Nano
ZMK Firmware https://github.com/gzowski/Ashwing64-shield-module/actions/runs/18663956356
Jan 09,2026
24 views
Ashwing64 - Mechanical keyboard

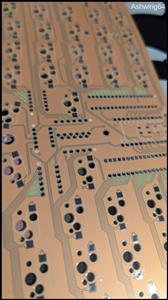

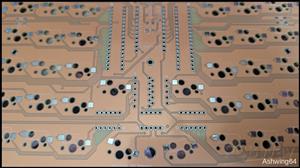

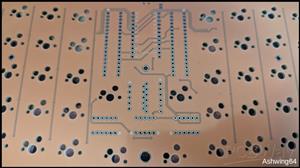

2 Layers PCB 110.092 x 289.914 mm FR-4, 1.6 mm, 1, HASL with lead, Transparent Solder Mask, White silkscreen
64 key mechanical keyboard designed for use with kailh hotswap sockets and NiceNano! or equivient microcontroller for wireless support.
