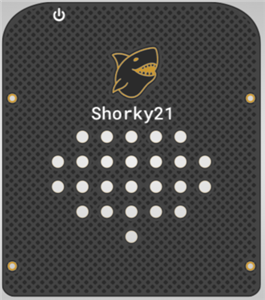

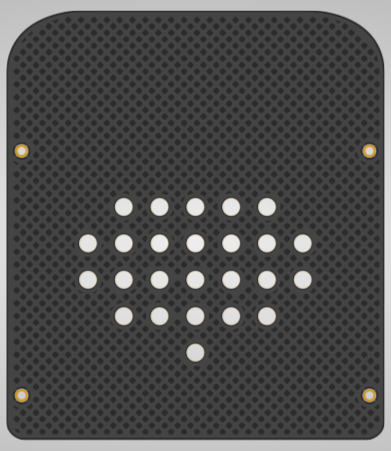

Shorky21 - Base Plate
This is my Shorky 21 macropad, it's a 21 key macro pad with 2 rotary encoders and per key LED's on the middle set of keys.
It's been designed for use with a NiceNano microcontroller, MX Switches and ZMK for wireless support.
This is Gerber file: Base Plate
There are also two other Gerber files which are optional but recommended, the top plate and the PCB plate.
Top Plate: https://www.pcbway.com/project/shareproject/Shorky21_Top_Plate_0c6b933f.html
PCB Plate: https://www.pcbway.com/project/shareproject/Shorky21_PCB_Plate_bab40b82.html
Full keyboard project is available on my github at github.com/gzowski/shorky21
Shorky21 - Base Plate
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
