Description
Stenowing28
This was a dive into stenography for myself while making it as cheaply as possible without resorting to using a using a standard keyboard.
If configured to use the Javelin firmware, you can also have the stenography dictionaries embedded into the keyboard instead of using third party software. More information about the keyboard can be found on my github repo listed below.
Features
- 28 Key layout
- Per key RGB LED's
- Javelin firmware (Reqires RP2040 pro micro with 16MB storage)
- Vertical stagger
Github Repository
https://github.com/gzowski/StenoWing
CAD-Custom parts and enclosures
Basic base plate for the stenowing, requires M2 mounts and screws to attatch the two together.
StenoWing_plate.step
May 17,2025
342 views
Stenowing28

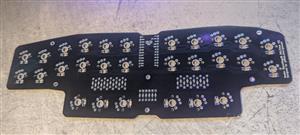

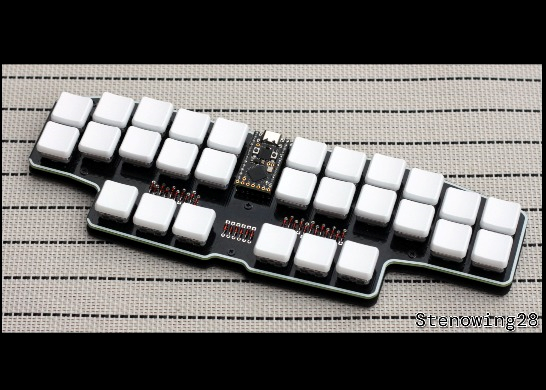

Stenowing28 Stenography keyboard
