Description

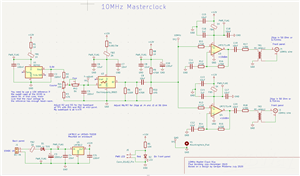

10MHz OCXO frequency reference 1 of 2
This is part of a 10MHz frequency reference that is based on an OCXO.
The project is described in detail on my Blog here:
https://www.paulvdiyblogs.net/2023/07/building-10mhz-master-clock.html
Among other things, I added a 12V regulator to stay within the specifications of the OCXO.
I updated a few footprints so this is version 1.1b.
Nov 10,2023
1,902 views
10MHz OCXO frequency reference 1 of 2
This is a project that will result in a high precision and stable 10MHz OCXO-based frequency standard.
1902
0
0
Published: Nov 10,2023
Standard PCB
Download Gerber file 34
BOM(Bill of materials)
Centroid file
PCBWay Donate 10% cost To Author
File Last Updated: 2025/07/14 (GMT+8)
