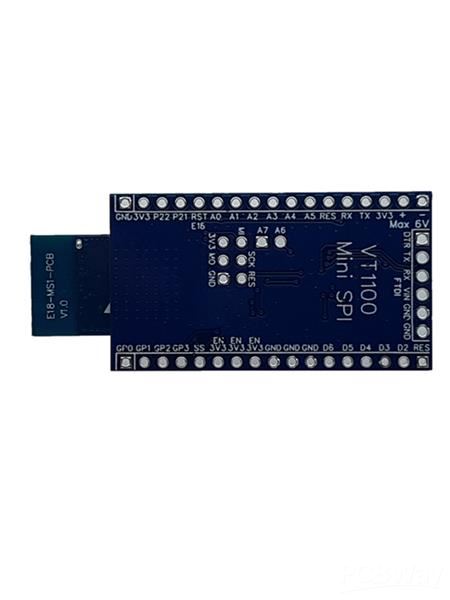

Vertorix VT1100 Mini – Arduino Compatible CC2530 Development Board

Introduction



The Vertorix VT1100 Mini is a low powered IOT development board compatible with the Arduino IDE. It contains a Ebyte E18-MS1 module and an Arduino compatible Atmega328P Microcontroller. The E18-MS1 is based on the CC2530 chip by Texas Instruments and is FCC, CE and ROHS Certified. The VT1100 Mini can be used to develop low powered IOT devices using the Arduino IDE and supports very low power sleep mode.


Features



·        Ebyte E18-MS1 Module (https://www.ebyte.com/en/product-view-news.aspx?id=122)

·        Arduino VT1100 Mini library (https://github.com/VertorixAU/Vertorix_VT1100_Mini) and examples hosted on GitHub to get started quickly

·        Low power consumption of approximately 7uA in sleep mode (approx. 2uA when using external interrupt)

·        Compatible with a wide range of sensors

·        Enable switch to turn power off to sensors during sleep mode

·        Pre-programmed with bootloader and firmware ready to be used with the Arduino IDE


Use Cases



·        Home automation / Building automation

·        Low power wireless sensor networks

·        Industrial automation and control

·        Environmental monitoring

·        Agricultural monitoring


VT1100 Specifications


Programming



The Atmega328P can be programmed using the Arduino IDE. The VT1100 was made without built in USB to keep the board compact. A separate USB-to-TTL Serial converter is used to upload sketches. There are many online tutorials for connecting these Converters to an Arduino Pro Mini.

USB-to-TTL Serial Converters:

·        CP2102 IC

·        FTDI FT232RL USB to serial 3.3V IC

There is also a 6-pin ICSP header to directly program the Atmega328P.

The Atmega328P sends commands to the CC2530 over a SPI interface. An Arduino library and examples are available on GitHub.

The CC2530 comes pre-flashed, ready to use with Z-stack Home 1.2.2a ZNP firmware. The necessary pins are available to re-program the CC2530.


Disclaimer



Only use this device for testing and educational purposes. All boards are manufactured at PCBWay. Please read the Terms of Service on the PCBWay website before purchasing.
