VU-Meter DIY Soldering Kit

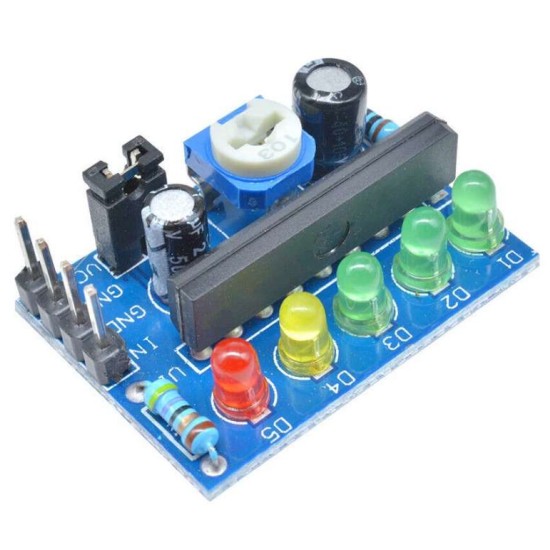

The VU-Meter, made by Niklas Heinzel, makes your music visible!

  • In this self-soldering kit, the music can be made visible through an audio connection (3.5mm jack) using the LM3915N, an LED driver
  • The strength of the rashes varies depending on the signal strength

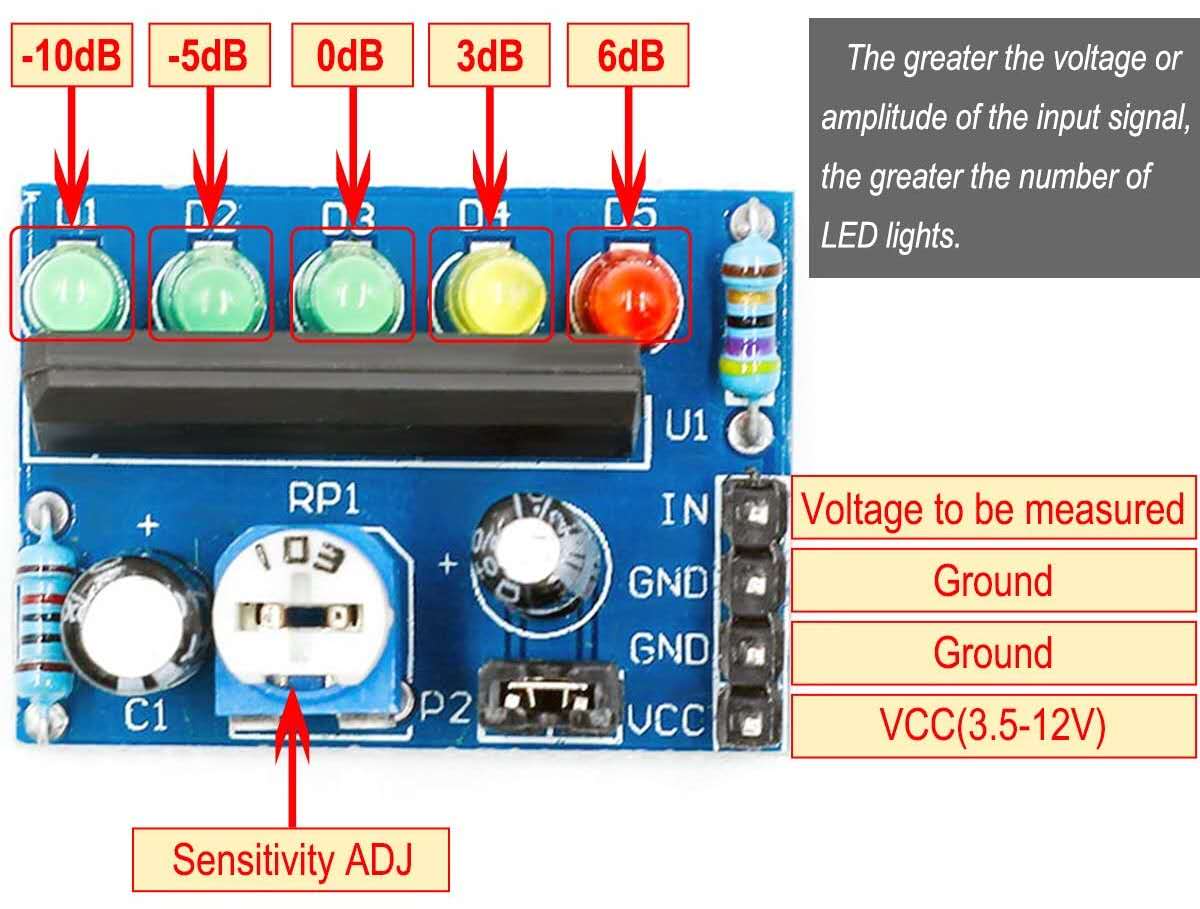

  • Another feature is the adjustment of the sensitivity of the controller using the integrated potentiometer
  • The device is operated with 5V via the connection (a USB Male to 5.5mm Barrel Connector is suitable for this)
  • The different signal strength also varies in the color of the controlled LEDs

Have fun with the kit!
