Vertorix VT1300 Shield – Arduino Compatible CC2530 Development Board
Introduction

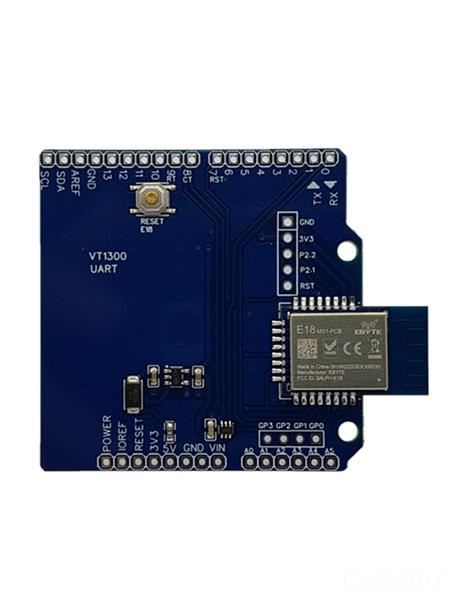

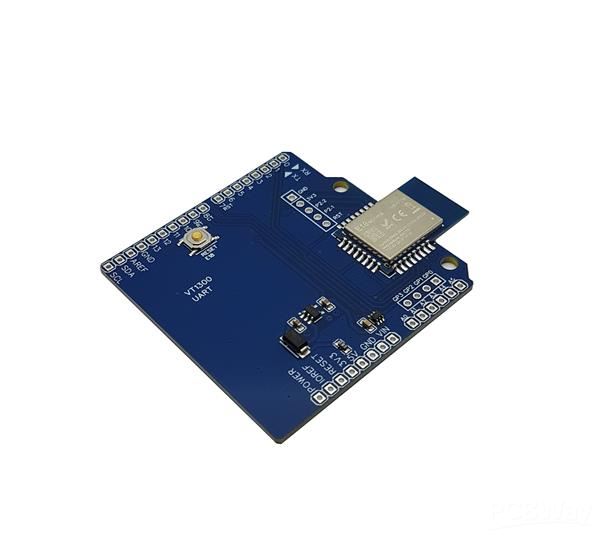

The Vertorix VT1300 is an Arduino compatible shield with a Ebyte E18-MS1 module. The E18-MS1 is based on the CC2530 chip by Texas Instruments and is FCC, CE and ROHS Certified. It can be used to develop low powered IOT devices using the Arduino IDE and is compatible with an Arduino Leonardo.
Features
· Ebyte E18-MS1 Module (https://www.ebyte.com/en/product-view-news.aspx?id=122)
· Arduino VT1300 library (https://github.com/VertorixAU/Vertorix_VT1300_Shield) and examples hosted on GitHub to get started quickly
· Compatible with a wide range of sensors
· Pre-programmed with firmware ready to be used with the Arduino IDE
Use Cases
· Home automation / Building automation
· Low power wireless sensor networks
· Industrial automation and control
· Environmental monitoring
· Agricultural monitoring

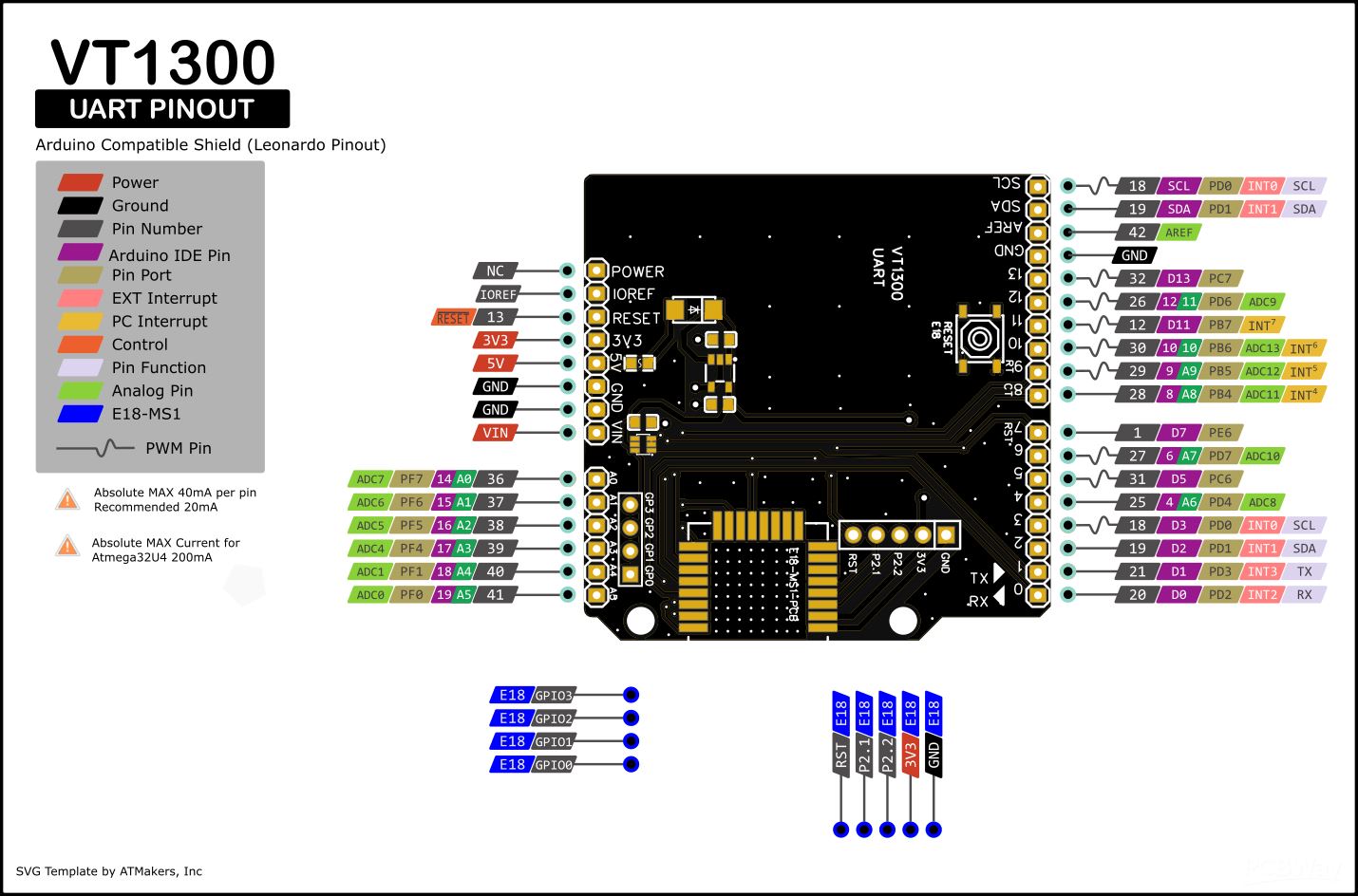

VT1300 Specifications
Programming
The VT1300 Shield is designed to be used with the Arduino Leonardo. An Arduino library and examples are available on GitHub.
The Leonardo is programmed using the Arduino IDE and sends commands to the CC2530 over a UART interface.
The CC2530 comes pre-flashed, ready to use with Z-stack Home 1.2.2a ZNP firmware. The necessary pins are available to re-program the CC2530.
Disclaimer
Only use this device for testing and educational purposes. All boards are manufactured at PCBWay. Please read the Terms of Service on the PCBWay website before purchasing.
