Description

ps2x2pico-JoySticks

ps2x2pico-JoySticks USB & DB9 to PS/2 Converter for ESPectrum Emulator

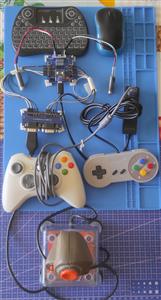

This versatile converter enables the connection of USB keyboards, mice, gamepads, and classic DB9 joysticks to the ESPectrum emulator via the PS/2 interface. Designed for retro computing enthusiasts, it offers seamless integration of modern and vintage input devices, ensuring authentic control and smooth operation. Ideal for hobbyists, emulator developers, and anyone looking to bridge the gap between classic hardware and modern emulation platforms.

Visit the following links for more information:

https://github.com/leorrr/ps2x2pico-JoySticks to download firmware for RP2040 and the bill of materials for its construction.

https://zxespectrum.speccy.org/

Download BOM(Bill of materials)

Sep 01,2025

294 views

ps2x2pico-JoySticks

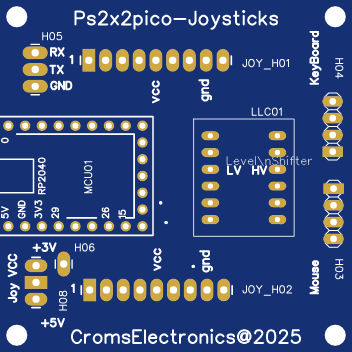

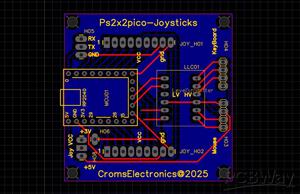

2 Layers PCB 53.3 x 53.3 mm FR-4, 1.6 mm, 1, HASL with lead, Blue Solder Mask, White silkscreen

USB keyboard, mouse, gamepad, and DB9 joystick to PS/2 converter for use with the ESPectrum emulator

294

Published: Sep 01,2025

Standard PCB

BOM(Bill of materials)

PCBWay Donate 10% cost To Author

File Last Updated: 2025/09/02 (GMT+8)

File update record

2025-09-0215:30:41

Parts List (BOM) is updated.
