mdt_pcb-enclosure-optional-back-cover
mdt_pcb-enclosure - OPTIONAL - back cover

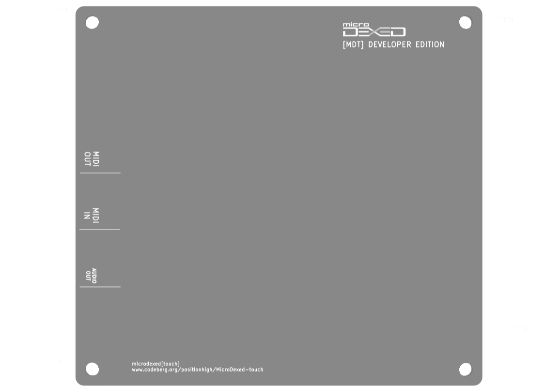

This is NOT the back plate for the pcb-based enclosure for Microdexed Touch.
This is an optional part that goes below the back plate and is not necessary to have.

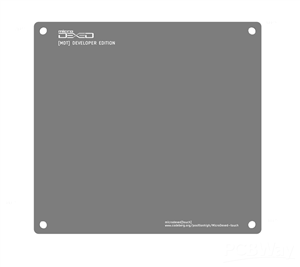

The purpose of this "empty PCB with 4 holes" is just to improve overall stability and also to cover up the bottom of the device fully to give better protection for the electronics against dust, metalic parts that could cause a short or other external influences.
Microdexed Homepage on pcbway:
https://www.pcbway.com/project/shareproject/MicroDexed_Capacitive_Touch_64970fee.html
Project Homepage:
https://codeberg.org/positionhigh/MicroDexed-touch
mdt_pcb-enclosure-optional-back-cover
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
