Description

Watara Supervision ONLY IPS LCD UPGRADE

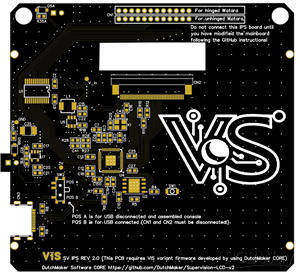

Watara Supervision IPS BOARD to add just an IPS screen to the OEM console (this is different from my previous project in which a reboard was required).

GitHub page will all the details here https://github.com/VISmodding/Watara-Supervision-ONLY-IPS-LCD-MOD

Produce this PCB with 1.2 mm thickness!!

Code

GitHub repo

https://github.com/VISmodding/Watara-Supervision-ONLY-IPS-LCD-MOD

Download BOM(Bill of materials)

Oct 21,2026

9 views

Watara Supervision ONLY IPS LCD UPGRADE

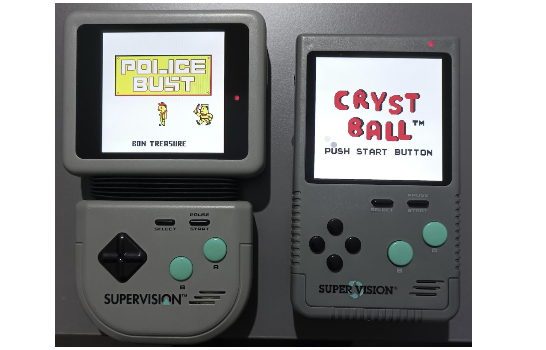

This is the version to just add an IPS LCD to an OEM watara console

Published: Oct 21,2026
