Description

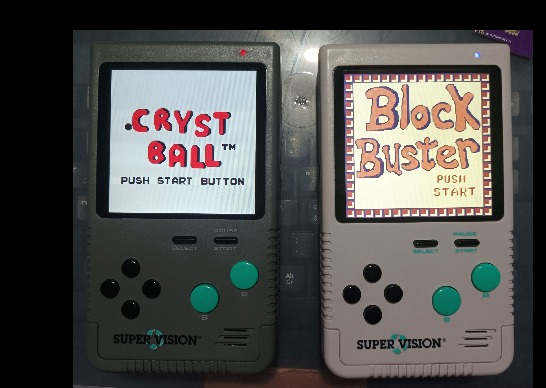

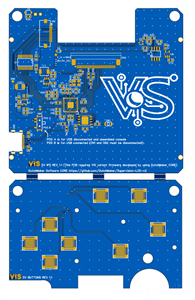

Watara Supervision IPS BOARD + BUTTONS BOARD VIS Version

GitHub page will all the details here https://github.com/VISmodding/Watara-Supervision-Lipo-built-in-reboard-IPS-screen

Produce this PCB with 1.2 mm thickness!! You have to select 2 designs while ordering.

THESE PCBs MUST USED WITH ALL THE OTHER VIS WATARA BOARDS!!!

LCD Firmware FIX July 2026

Updated the ST7796S LCD initialization sequence using the official EastRising ER-TFT3.92-1 reference code. This fixes the visible horizontal crosstalk/banding on light backgrounds while keeping the original firmware colors, menu and rendering behavior unchanged (in the video this thing can be seen). Now the driver is totally perfect with all background colors!
