DSP32-CORE

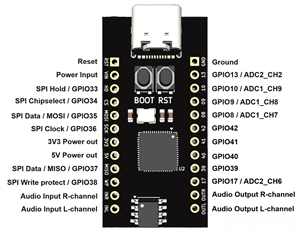

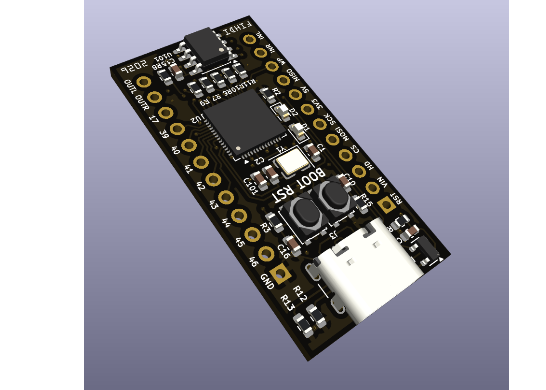

DSP32-Core is a small (4cm x 2cm) audio development board based on the ESP32-S3. This board can be used as the core for digital music and audio applications involving synthesizers, samplers, digital effects, sequencers, etc. The SPI interface allows to connect an SD-card to the board and save and replay music and project settings.
Github Repo: https://github.com/Fihdi/DSP32-CORE
