Fihdi

AUSTRIA • + Follow Edit Project

0

Tools, APP Software Used etc.

KiCad 9.0

Description

ATS20 A-Board

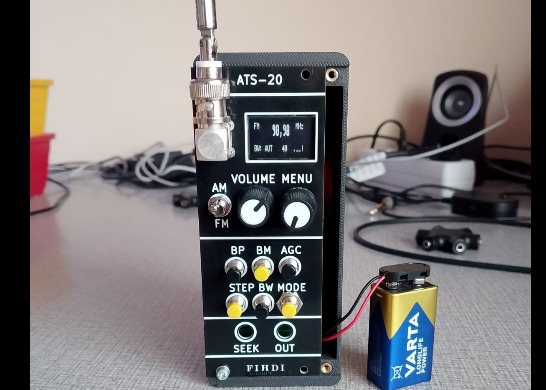

An ATS-20 Radio port in 3U height. Jumpers on the PCB lets the device be used as an Eurorack module or as a standalone all-band receiver.

A regular 12VDC wall wart or a 9V battery can be used for standalone usage.

https://github.com/Fihdi/ATS-20-Eurorack

Download Gerbers

Jul 14,2026

14 views

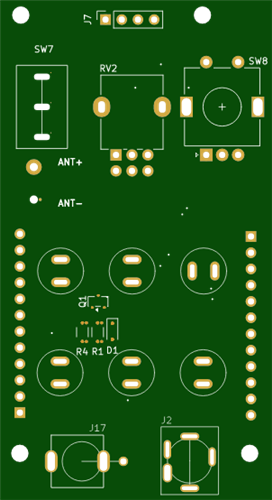

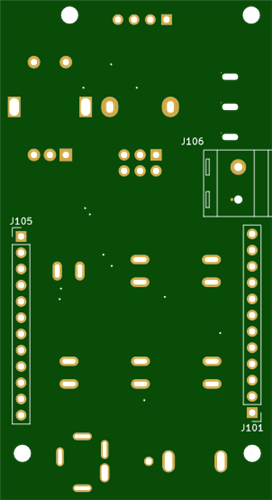

ATS20 A-Board

2 Layers PCB 78.2 x 42.6 mm FR-4, 1.6 mm, 1, HASL with lead, Green Solder Mask, White silkscreen

14

0

1

Published: Jul 14,2026

Standard PCB

Download Gerber file 0

Purchase

Donation Received ($)

PCBWay Donate 10% cost To Author

Only PCB

*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.

Copy this HTML into your page to embed a link to order this shared project

Copy

Copyright Info

Attribution-ShareAlike (CC BY-SA) License

Under the Attribution-ShareAlike (CC BY-SA) License.
