Description

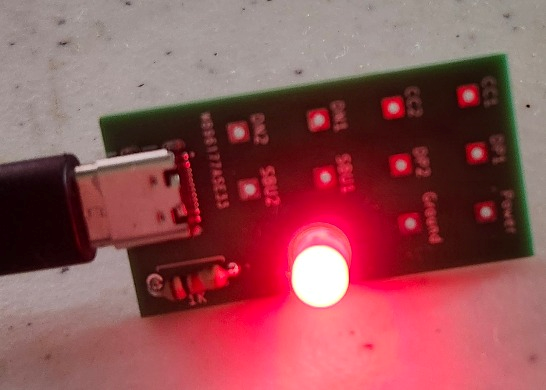

Test USB C board

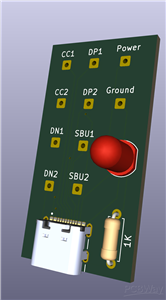

I needed to add a USB C connector as the power input for one of my current projects. This board was created as a test. I have provided the project files, including the footprint and 3D model files. The main project archive is "light.zip," which contains both the footprint and the STEP 3D file. You can solder wires to use the board with a breadboard. Feel free to copy and paste the schematic into your own project.

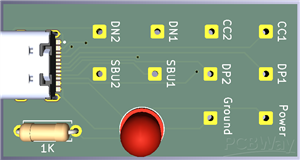

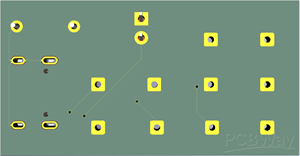

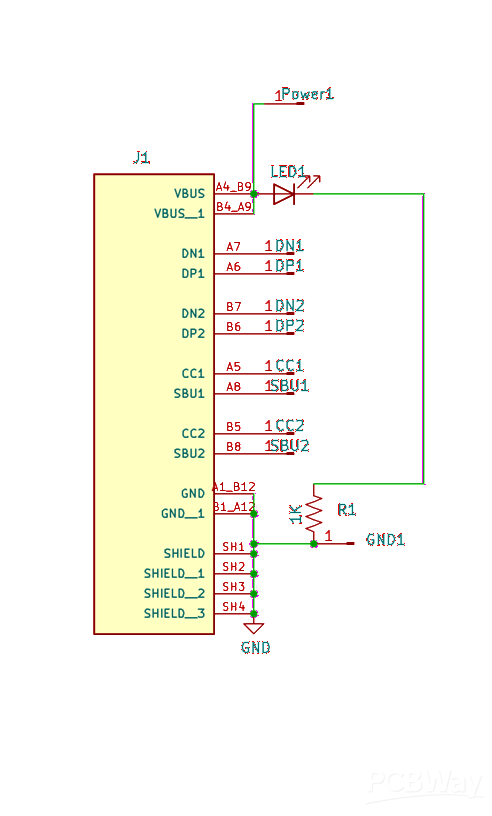

Schematic and Layout
May 02,2026
122 views
Test USB C board
2 Layers PCB 39.8 x 20.8 mm FR-4, 1.6 mm, 1, HASL with lead, Green Solder Mask, White silkscreen
