Hello,

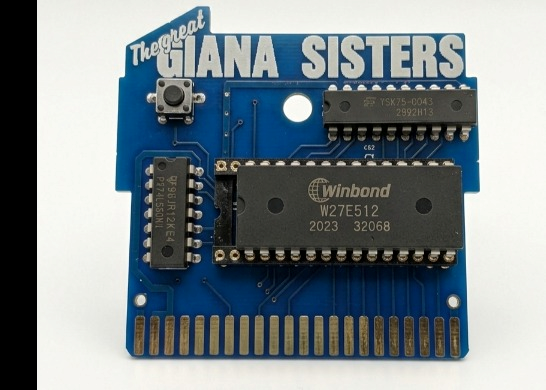

This is a tested and working circuit board.

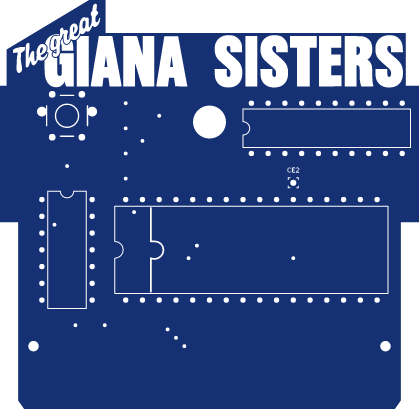

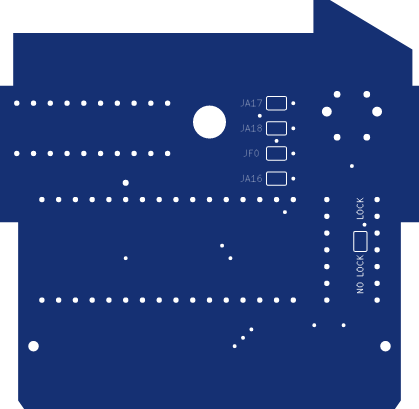

This PCB is designed for making a Commodore 64 The Great Giana Sisters game cartridge.

https://en.wikipedia.org/wiki/The_Great_Giana_Sisters

This C64 cartridge is based on the C64 Magic Desk cartridge, modified to run a single autostarting game/program (.prg extension) on the Commodore 64. There is a 64KB EPROM (27C512) on the cartridge.

There are different versions of this game for the Commodore 64. You can choose your favourite version and prepare your own EPROM binary image using special software. With this software, you can prepare an EPROM image (.bin file) containing a single autostarting file without a menu. You can test the .BIN file using the VICE emulator.

Many thanks to Feandreu and zzarko. You can download the software from this link:

https://github.com/Feandreu/mdeskcrtgenfsp

This Magic Desk-compatible cartridge is based on msolajic's (Marko Solajic) "c64-magic-desk-512k" project. Many thanks to Marko Solajic.

https://github.com/msolajic/c64-magic-desk-512k

This cartridge can also be used as a generic 64KB Commodore 64 Magic Desk-compatible cartridge.

To protect your electronic devices, always turn off your Commodore 64 before connecting or disconnecting any device.

Have fun!

Thank you.

COMPONENTS:

27C512 DIP28 (W27C512)

74LS02 or 74HC02 DIP14

74LS273 or 74HC273 DIP20

DIP28 WIDE IC SOCKET

If your programmer can test IC chips, such as 74LS series logic ICs, remember to test them before soldering, as some chips may be defective. The TL866 MiniPro programmer can test some logic ICs.

Gerber files may be changed at any time. Before paying for your PCBs, make sure to update your order with the latest files!

This project only includes a specially designed PCB. No Commodore 64 game or program will be provided or shared.
