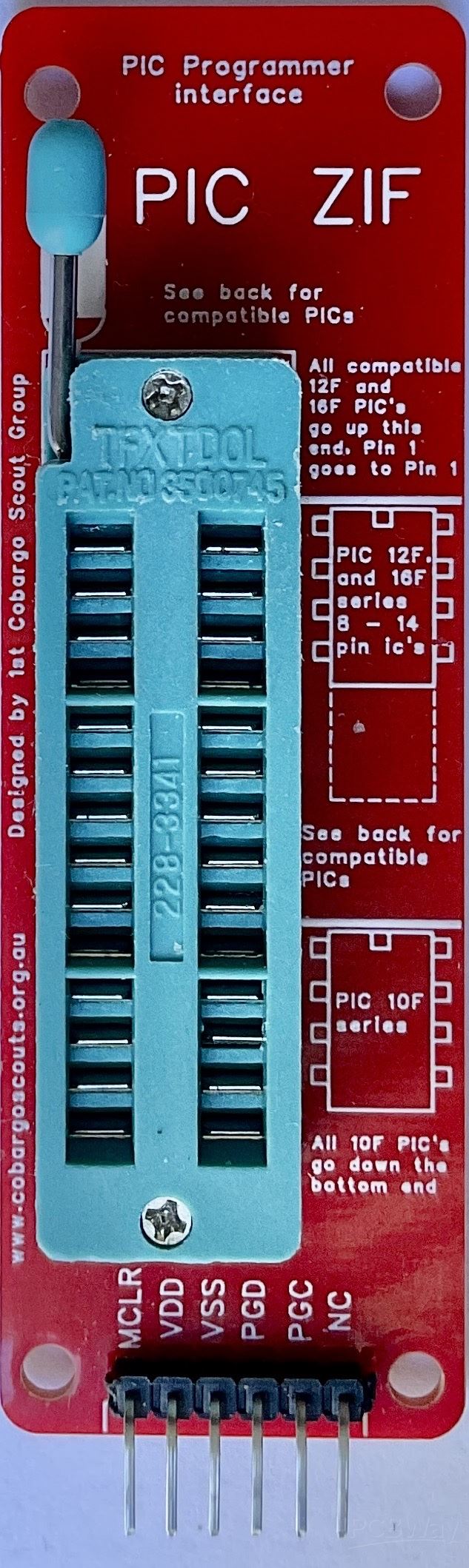

The PIC ZIF is a very simple to use ZIF programming socket when Programming PICS in bulk. There is no strapping required. It only takes PIC12F1572, PIC16F18 (8-14 pin) series and PIC10F series PICs. It can take other PICS as long as the programming pins conform to the pinouts, see the back of the board for details.
Oct 26,2025
118 views
PCB1_Final_version_2025-08-08(1)
2 Layers PCB 86.4 x 28.2 mm FR-4, 1.6 mm, 1, HASL with lead, Red Solder Mask, White silkscreen
A very simple PIC ZIF programming socket for a limited series of PICS
