Description
PROXIS_BOX_REV_A_GERBERS

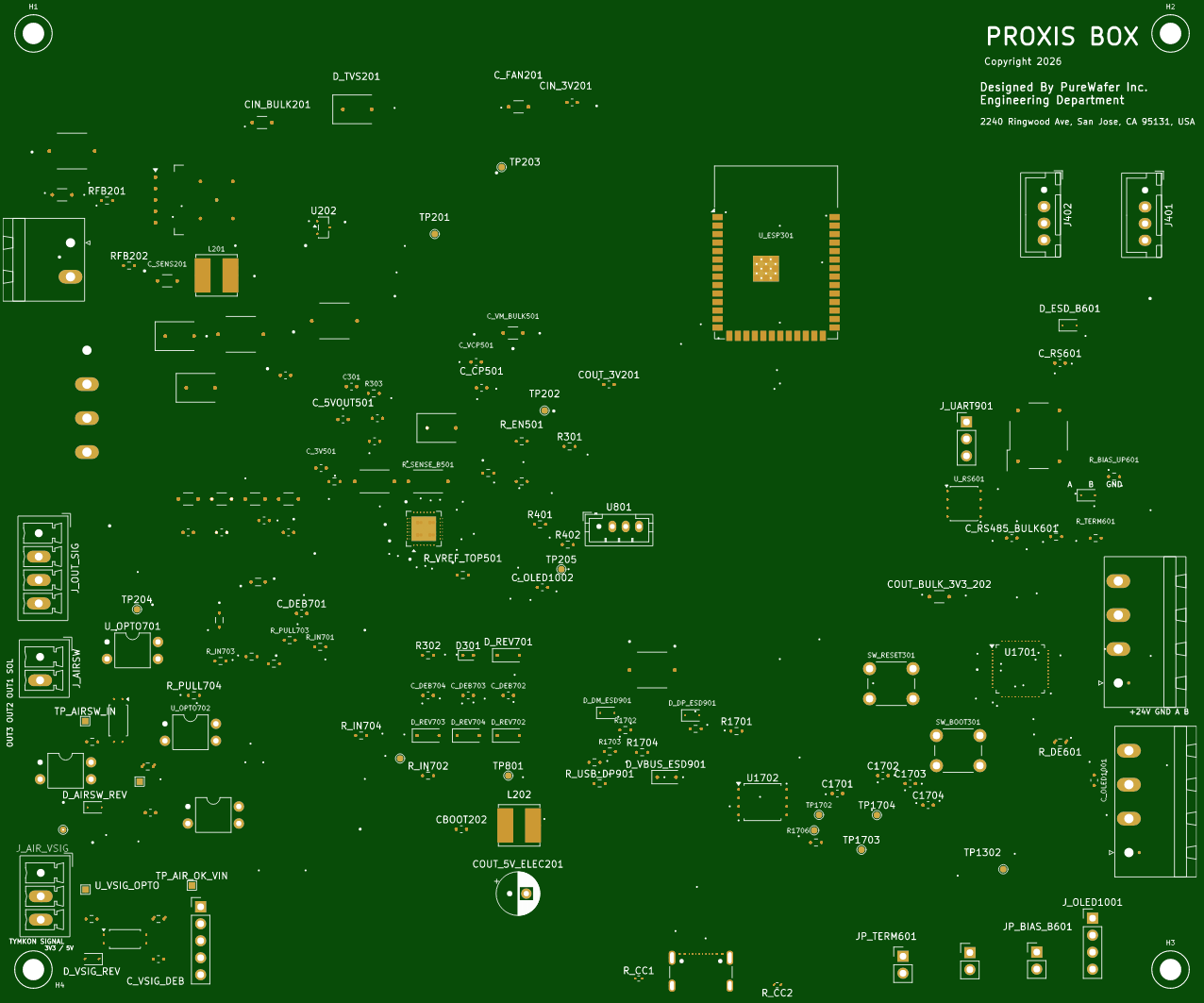

PROXIS BOX is a 4-layer industrial IoT controller board designed for gas detection and fluid pump management. It features an ESP32-S3 for WiFi/BLE connectivity, an STM32G0 coprocessor for real-time motor control via TMC2209 stepper driver, dual RS485 interfaces for industrial gas sensors, opto-isolated digital inputs for air/steam detection, and a complete power management system (24V to 5V/3.3V). Designed in KiCad 9.0 by PureWafer Inc.
Mar 06,2026
15 views
PROXIS_BOX_REV_A_GERBERS
4 Layers PCB 150 x 180 mm FR-4, 1.6 mm, 1, Immersion gold, Green Solder Mask, White silkscreen
Industrial IoT gas detection & pump controller with ESP32, STM32, TMC2209, RS485, and opto-isolated inputs
15
0
1
Published: Mar 06,2026
Standard PCB
PCBWay Donate 10% cost To Author
Only PCB
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-NonCommercial-NoDerivs (CC BY-NC-ND)
License.
