PROXIS_BOX_REV_A_GERBERS

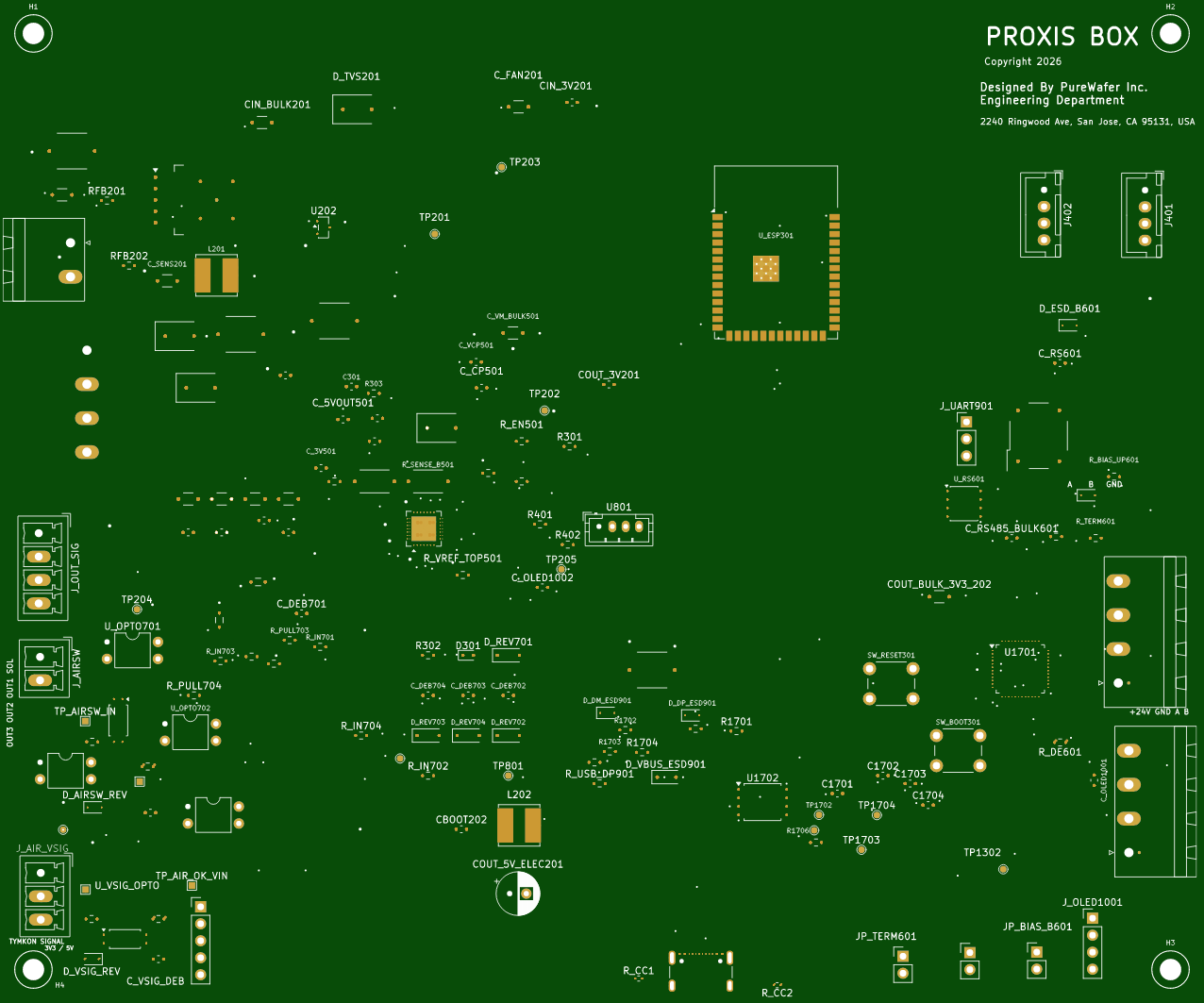

PROXIS BOX is a 4-layer industrial IoT controller board designed for gas detection and fluid pump management. It features an ESP32-S3 for WiFi/BLE connectivity, an STM32G0 coprocessor for real-time motor control via TMC2209 stepper driver, dual RS485 interfaces for industrial gas sensors, opto-isolated digital inputs for air/steam detection, and a complete power management system (24V to 5V/3.3V). Designed in KiCad 9.0 by PureWafer Inc.
PROXIS_BOX_REV_A_GERBERS
Project images are for reference only. Actual production is based on the manufacturing files on the project page.
Please review the designer's notes (e.g., PCB thickness) and select the appropriate options.
PCBWay is not responsible
for issues caused by unsuitable parameter selections.
For more important ordering information, please refer to
Read More
