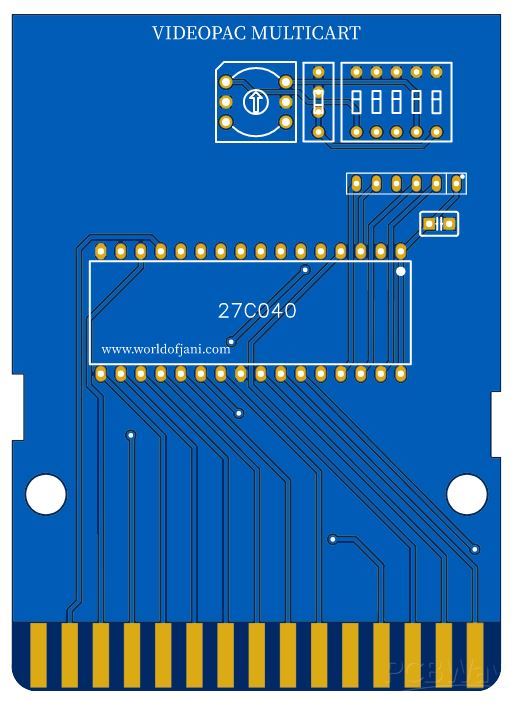

Videopac / Odyssey 2 multicart (eprom) with rotary/DIP switch
Videopac / Odyssey 2 multicart (eprom) for the Videopac console. ROM/bank selection is done by a rotary switch and / or DIP switches.
Tested to work, more information at https://blog.worldofjani.com/?p=8738
Videopac / Odyssey 2 multicart (eprom) with rotary/DIP switch
Project images are for reference only. Actual production is based on the manufacturing files on the project page.
Please review the designer's notes (e.g., PCB thickness) and select the appropriate options.
