Components

	Raspberry Pi Pico (purple clone)	x 1
	1N4148	x 1
	Tactile switch 6x6 or 6x6 90°	x 1

Description

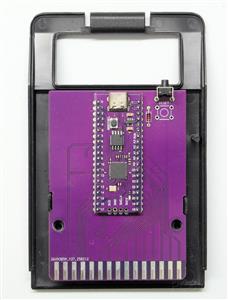

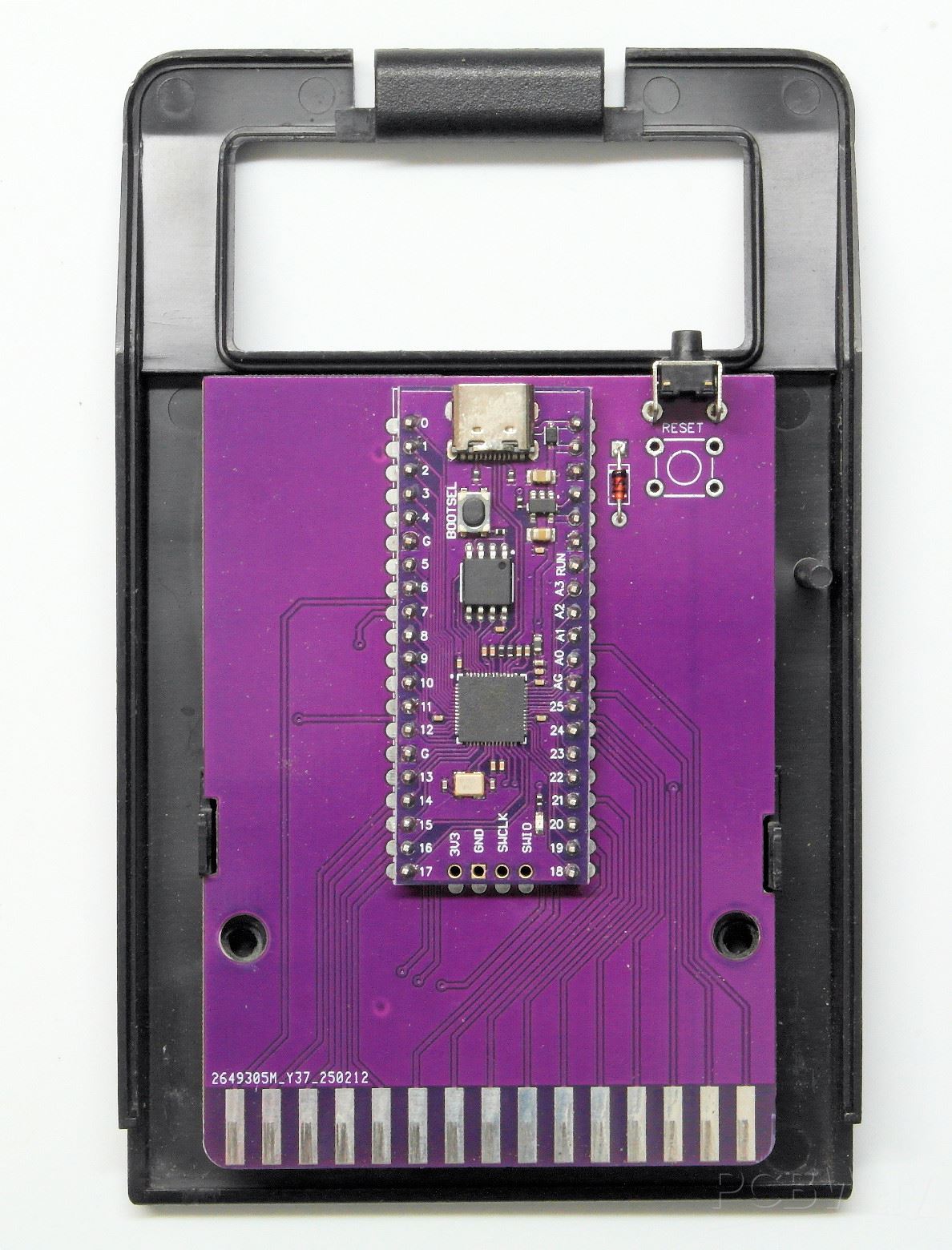

Videopac / Odyssey 2 PicoPAC Flashcart

Based on the work by Aotta https://github.com/aotta/PicoPAC

Raspberry Pi Pico must be a "purple clone" since it has different pinout than the original

Tested to work, more information at https://blog.worldofjani.com/?p=8911

Apr 01,2026

16 views

Videopac / Odyssey 2 PicoPAC Flashcart

Published: Apr 01,2026

Standard PCB

PCBWay Donate 10% cost To Author

Only PCB

Add to cart

*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.

Copy this HTML into your page to embed a link to order this shared project

Copy

Under the Attribution-NonCommercial-ShareAlike (CC BY-NC-SA) License.
