Useless Light Switch Plate

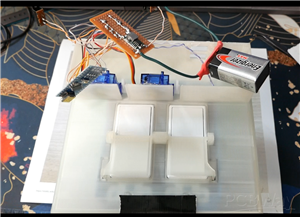

If you're to make one, mirror one of the switch flaps. Print the main body and the flaps vertically with support for best results.
You will need:
1x - arduino
2x - servos
2x - limit switches
2x - switches
3x - 5kohm resistors
1x - 9V battery connector

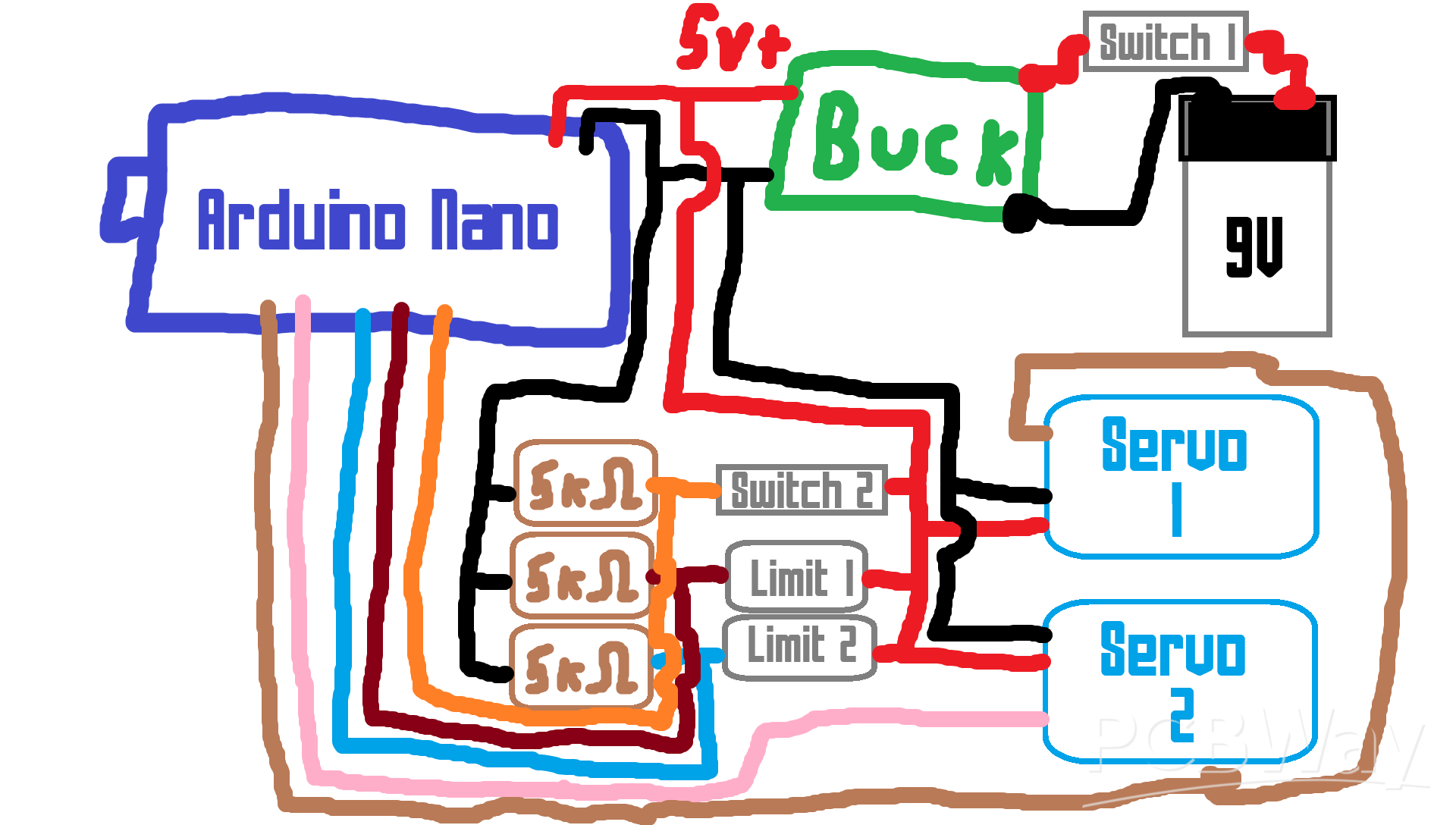

I will have a PCB made for this soon. For now, farewell with my poorly drawn wiring diagram
Code
Useless Code
shttyswitch.ino
Schematic and Layout
Diagram
CAD-Custom parts and enclosures
USELESS
useless (1) (1) (1).zip
Nov 02,2025
82 views
Useless Light Switch Plate

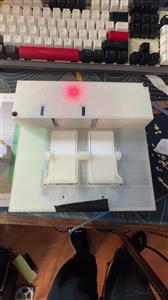

I made this useless light switch cover that transforms your paddle-style light switches into a useless box!
