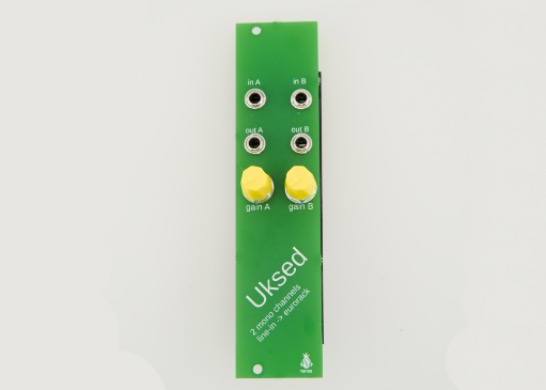

Uksed: Eurorack 2 channel audio input module
Dual mono input module that brings external audio sources into your Eurorack system. Amplifies line-level signals (synthesizers, samplers, drum machines) to Eurorack levels (10Vpp).
Features:
- 2 independent mono input channels
- Converts standard audio (~3.5Vpp) to Eurorack levels (-5V to +5V)
- Essential for integrating external gear with your modular system
- Perfect for processing external synthesizers, samplers, or any audio source through your Eurorack effects and modules.

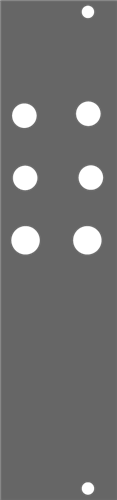

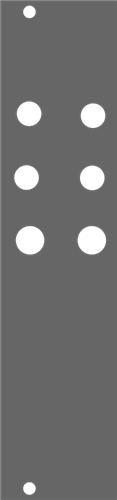

Front Panel: Gerber file for PCB-based front panel available in the "Schematic and Layout" section for download.
Schematic and Layout
Gerber file for PCB Panel
PCB Panel v3_2025-08-21.zip
Uksed Schematic
Uksed_Schematic.pdf
Aug 21,2025
646 views
Uksed: Eurorack 2 channel audio input module
Bring output from other synthesizers, samplers, or any audio source to Eurorack signal levels. Ready for endless creative processing.
