Mini: Eurorack modular synth USB-C power supply

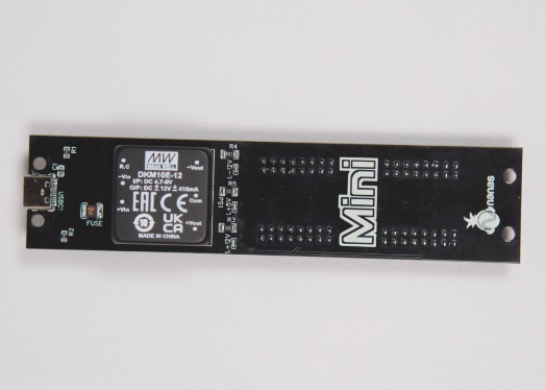

Mini provides +/- 12V and 5V voltage to your Eurorack module. With a 15W USB-C power source, it can deliver up to 416mA. You can utilize a phone charger, the USB-C port on your laptop, or even a power bank to power your Eurorack modular synth system. It is particularly suitable for driving small setups or powering your DIY Eurorack module project.

Mini can be utilized as a standalone desktop module or connected to rails.

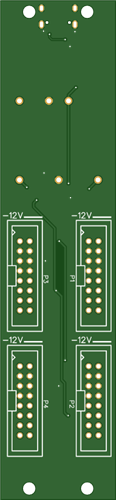

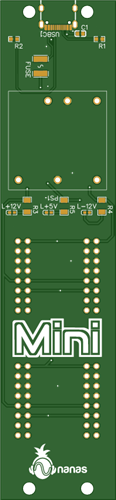

Schematic and Layout

Mini V2.0

https://github.com/nanassound/eurorack-nanassound/tree/main/Mini/V2.0

CAD-Custom parts and enclosures

Small Eurorack case for Mini

https://cults3d.com/en/3d-model/gadget/mini-42hp-eurorack-case-60mm-depth

Download Gerbers Download BOM(Bill of materials)
