USBpwrME..

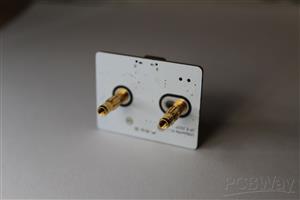

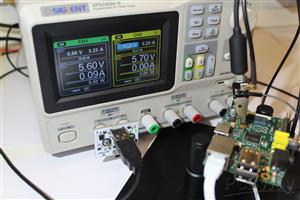

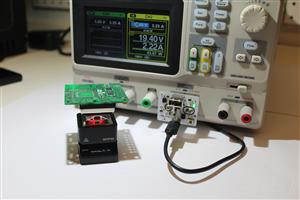

Many times i use USB to power my homebuilt projects and every time i have annoying issues on how to power the DUT in a prectical way during test and develppment. I want to use my bench power supply as power source to have controll of the power into my board so mostly i ended up cutting a USB wire to connect to the power supply.

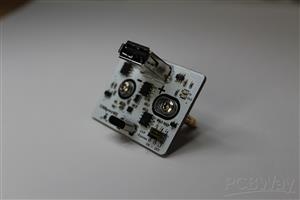

So finally i designed this adaptor to make the connections really easy and universal with some rally important safety features such OVP and polarity protection.
Project files are available. Note that the project will be updated with never revision and some added functions
