Tools, APP Software Used etc.

KiCad 9.0

Description

USB-C to Tag Connect TC2030 for ESP32 USB debugging, v1

Main page is at https://github.com/ianrrees/esp32-usb-c-tag-connect

This is a simple adapter board, meant to use a 6-pin Tag Connect TC2030 cable for programming and debugging variants of ESP32 that provide on-chip USB-JTAG debuggers. TC2030 pinout matches Tag Connect's TC2030-USB, adding two buttons to pull EN (reset) and IO0 (bootloader) to ground.

Download Gerbers

Jul 31,2025

374 views

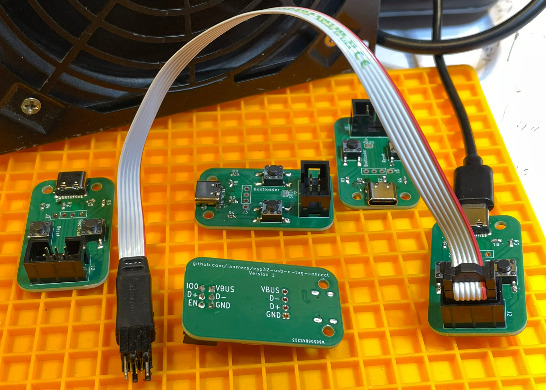

USB-C to Tag Connect TC2030 for ESP32 USB debugging, v1

2 Layers PCB 42 x 25 mm FR-4, 1.6 mm, 1, HASL lead free, Green Solder Mask, White silkscreen

Matches Tag Connect TC2030-USB pinout, replacing two N/C pins 2 and 6 with IO0 and EN respectively, and provides buttons for them

374

Published: Jul 31,2025

Standard PCB
