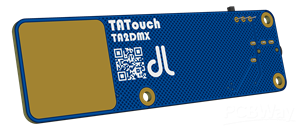

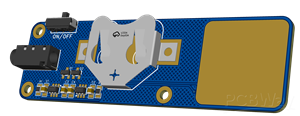

Touch CW Key
Touch CW Key is a compact, touch-sensitive Iambic Morse key powered by a single CR2032 coin cell battery.
It eliminates all mechanical parts, offering a smooth and silent keying experience ideal for portable CW (Morse code) operators and QRP enthusiasts.
This modern approach to a traditional Morse paddle uses capacitive touch sensing to detect left and right paddle inputs.
With ultra-low power consumption and lightweight design, it’s perfect for field operations, minimalist stations, or embedded keyer circuits.
Key Features:
- Touch-based Iambic Key – no moving parts, long lifespan
- Power: CR2032 lithium coin cell
- Ultra Low Power operation for extended use
- Logic-level output, compatible with CW keyers and microcontrollers
- Compact and durable PCB design
- Ideal for QRP, portable, or embedded CW setups
This open-source project is designed and shared by Uğur Altınsoy for CW operators who appreciate innovation, portability, and reliability in
Morse communication.
Touch CW Key
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
