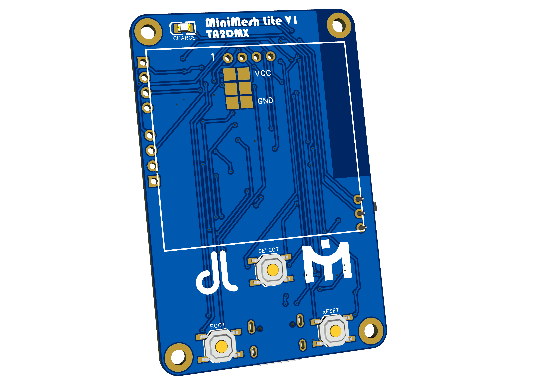

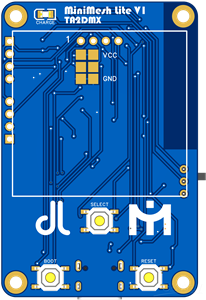

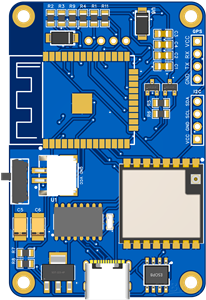

MiniMesh Lite
⚙️ Features
- MCU: ESP32-WROOM-32
- LoRa Module: RA-02 (SX1278 / SX1276)
- Display: 1.3" OLED (I²C, 128x64)
- GPS Port: External GPS module supported (e.g., u-blox, MAX-M10S)
- I²C Port: External sensors or peripherals supported
- Power: 5V USB / Li-ion Battery
- Supports Projects:Meshtastic
- - LoRaAPRS
- - Other LoRa-based communication systems
