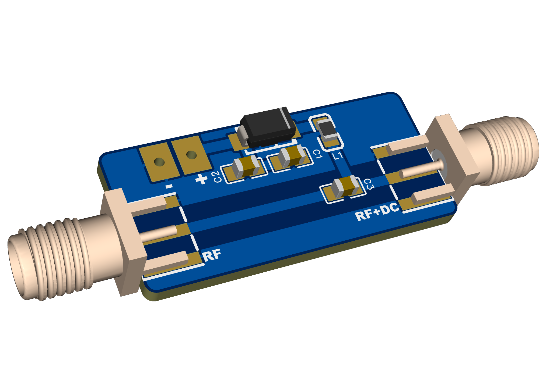

RF Bias Tee

An RF Bias Tee combines DC power and RF signals onto a single line, enabling active devices like amplifiers or LNBs to operate without interfering with RF transmission. It's commonly used in satellite communications, such as QO-100 projects, where it powers low-noise block converters (LNBs). Other applications include radio astronomy, RF testing, and powering remote antennas or active circuits in telecommunications.

Download BOM(Bill of materials)

Dec 23,2024

280 views

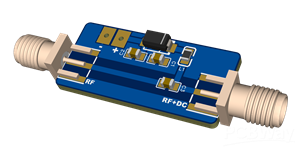

RF Bias Tee

2 Layers PCB 14 x 30 mm FR-4, 1.6 mm, 1, HASL with lead, Green Solder Mask, White silkscreen

An RF Bias Tee combines DC and RF signals, allowing power to be supplied to active devices like amplifiers without affecting RF transmission
