Tools, APP Software Used etc.

Hot_Plate_Firm.zip

Tim

Description

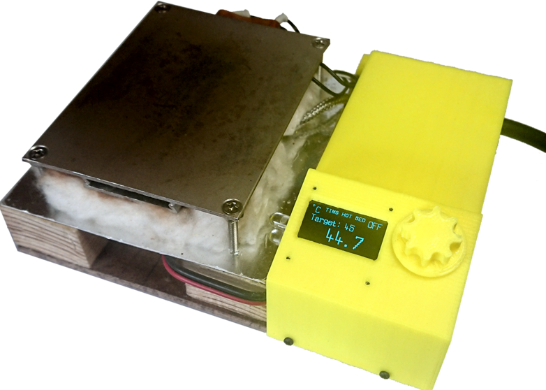

Tim's PTC Hot Plate Controller

This is a for a DIY Hot Plate, for soldering SMD to PCBs.

The heater element that it controls are the 300W PTC type, the small cheap aluminium ones sold on the internet.

I have done a full Instructable using separate modules here: Tim's Hot Plate : 26 Steps (with Pictures) - Instructables

You may want to do it using modules shown in the instructable.

This is for those that would like to make a single PCB version.

I used a small 5 volt PSU unit in the Instructable, this is still required. (I have no clue where to get the transformer used in the PSU)

So I have designed this board to take the PSU Module.

I will be updating the Instructable when I receive this PCB.

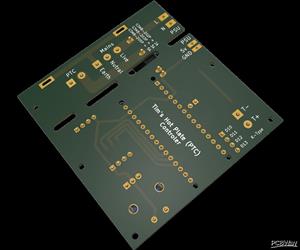

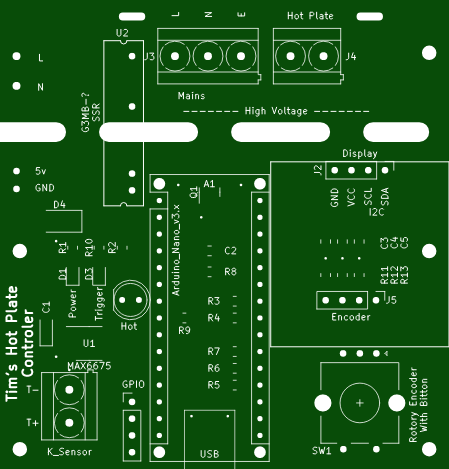

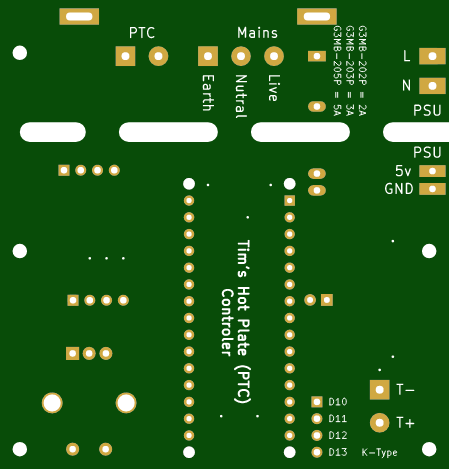

Schematic and Layout

KiCAD Files

Tims_Hot_Plate_PCB_KiCAD.zip

Download Gerbers Download BOM(Bill of materials)

May 05,2022

2,566 views

Tim's PTC Hot Plate Controller

2 Layers PCB 71 x 68 mm FR-4, 1.6 mm, 1, HASL with lead, Green Solder Mask, White silkscreen

Temperature control of a 300W PTC Hot Plate This is the PCB version of one I made from modules and showed on Instructables.

2566

Published: May 05,2022

Standard PCB

Download Gerber file 66

BOM(Bill of materials)

PCBWay Donate 10% cost To Author

Only PCB

PCB+Assembly

Add to cart

*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.

Copy this HTML into your page to embed a link to order this shared project

Copy

Under the Attribution-ShareAlike (CC BY-SA) License.
