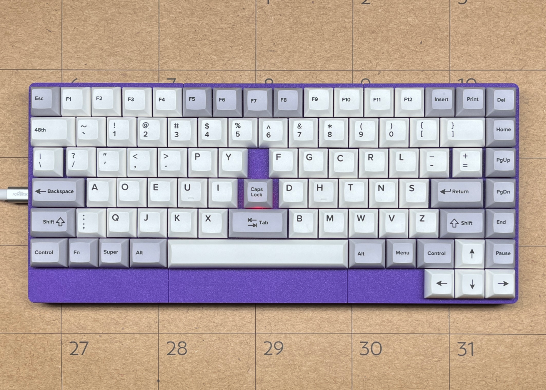

The 'Dvorak 2026' Human-Factored Compact Two-Hand Keyboard
Why are writers born in the third decade of the 21st century forced into an injurious 152-year-old tradition? Children deserve better.
Operating a conventional typewriter-based Dvorak keyboard for two decades caused the repetitive stress injury of my left hand and wrist. The act of encoding language into a 19th-century mechanical typewriter format is stressful and physically damaging.
I have exclusively used my hardwired 'Dvorak 2026' keyboards for over a year. Writers of all ages that use a 'Dvorak 2026' keyboard will flourish.

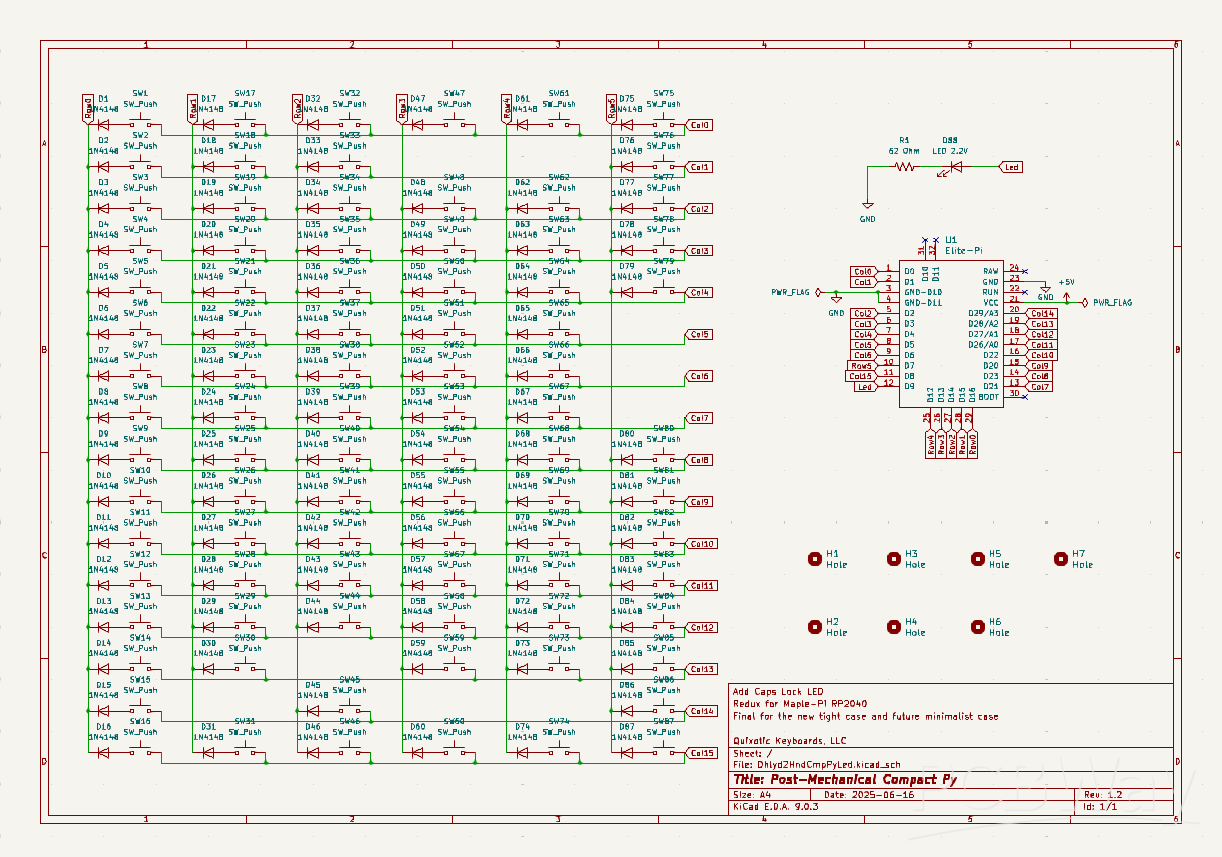

The 'Dvorak 2026' two-hand keyboard has a 'Caps Lock' LED indicator. It uses a Maple Elite-Pi micro-controller.
I build writing instruments that are designed for human hands. The keys are positioned where my two hands expect them to be. Writing no longer causes me pain. Writing is now great fun. Stop typing and start writing...
Ronald Earl Walker - Inventor/Maker
Please visit https://quixotickeyboards.com for background information and build instructions.
Please visit https://github.com/Dholydai/writerz-with-an-attitude for the complete project files.
Please visit https://github.com/Dholydai/mx-switch-custom for the custom KiCad-native symbol and footprints used.
The 'Dvorak 2026' Human-Factored Compact Two-Hand Keyboard
Project images are for reference only. Actual production is based on the manufacturing files on the project page.
Please review the designer's notes (e.g., PCB thickness) and select the appropriate options.
