(DIY) C64iSTANBUL
TURKEY • + Follow
Components
|
|
TQFP44 ATMEGA 644 or TQFP44 ATMEGA 1284 |
x 1 | |
|
|
2pcs. 20pin round pin headers |
x 2 |
Description

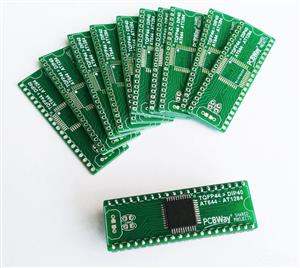

TQFP44 to DIP40 CONVERTER ADAPTER PCB for MICROCHIP (ATMEL) ATMEGA644 and ATMEGA1284
TQFP44 to DIP40 CONVERTER ADAPTER PCB for
MICROCHIP (ATMEL) ATMEGA644 and ATMEGA1284
This circuit board is tested with ATmega644P TQFP44 and it is working properly.
This "TQFP44 PACKAGE to DIP40 CONVERTER ADAPTER" is for using some 44pin TQFP package IC with a 40pin DIP board.
I specially designed this "TQFP 44 package to DIP 40 converter adapter" for MICROCHIP (ATMEL) ATMEGA644 and ATMEGA1284, I do not guarantee to work for any other IC.
With this adapter you can replace a 40Pin ATmega644 or ATmega1284 with a TQFP44 package ATmega644 or ATmega1284
You can use any programmers, to program TQFP44 pin AT644 or AT1284, with this adapter.
http://ww1.microchip.com/downloads/en/DeviceDoc/doc2593.pdf
Please use Round pin headers in order protect IC sockets.
Gerber files can be changed at any time. Before paying for the PCBs, be sure to update your orders!
Have fun
Thank you
Components:
TQFP44 ATMEGA 644 or TQFP44 ATMEGA 1284

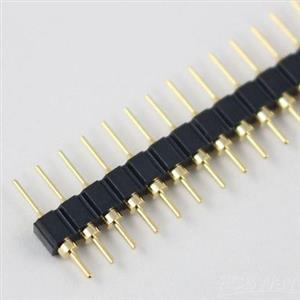

2pcs. 20pin round pin headers
Code
http://ww1.microchip.com/downloads/en/DeviceDoc/doc2593.pdf
Schematic and Layout
http://ww1.microchip.com/downloads/en/DeviceDoc/ATmega164A_PA-324A_PA-644A_PA-1284_P_Data-Sheet-40002070B.pdf
Jun 30,2020
9,148 views
TQFP44 to DIP40 CONVERTER ADAPTER PCB for MICROCHIP (ATMEL) ATMEGA644 and ATMEGA1284
With this adapter you can replace a 40Pin AT644 or AT1284 with a TQFP44 package AT644 or AT1284
9148
17
4
5.50 (3)
Published: Jun 30,2020
Standard PCB
PCBWay Donate 10% cost To Author
Only PCB
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-ShareAlike (CC BY-SA)
License.
