KiCad 8.0KiCad
|

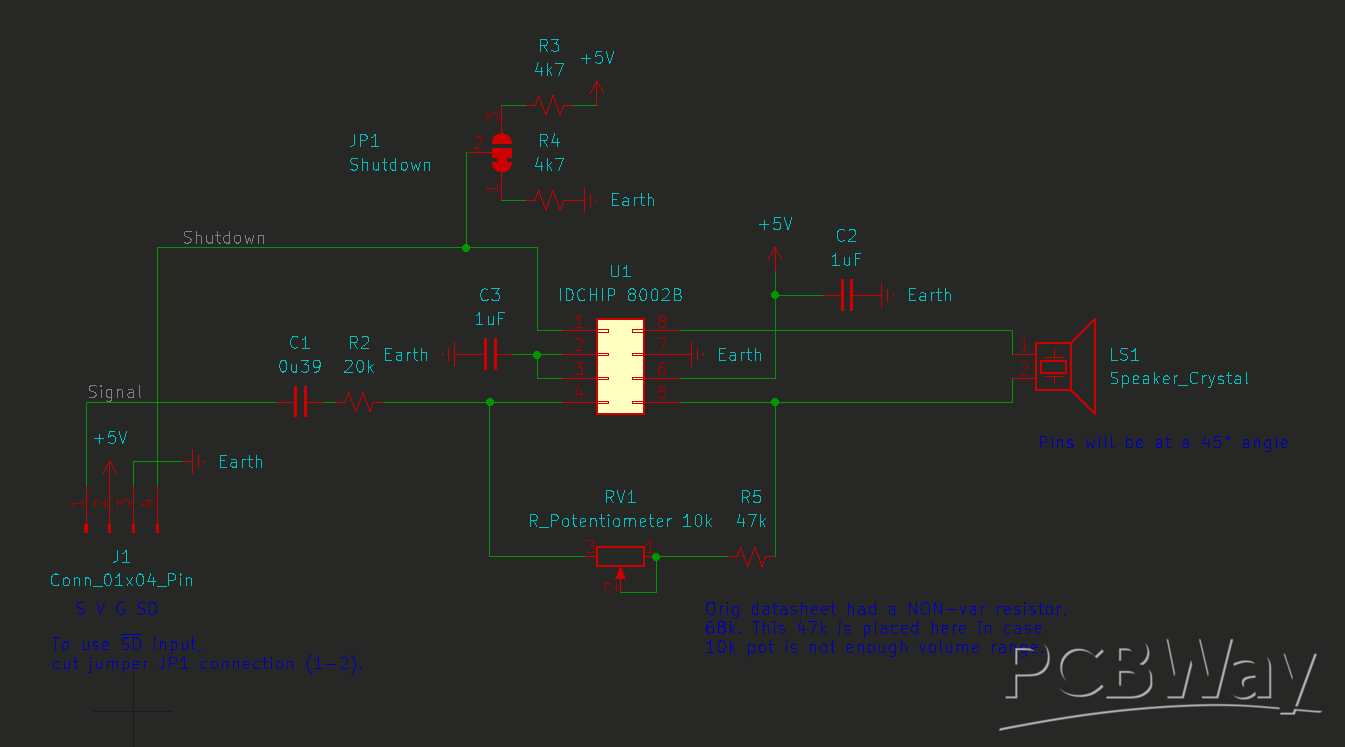

Speaker module 8002B for arduino
Speaker module 8002B for arduino / esp32 / breadboard.
Uses old speaker design and old pinout, compared to new module on aliexpress etc, that uses a new pinout.
Also a little bit smaller, for saving board space.

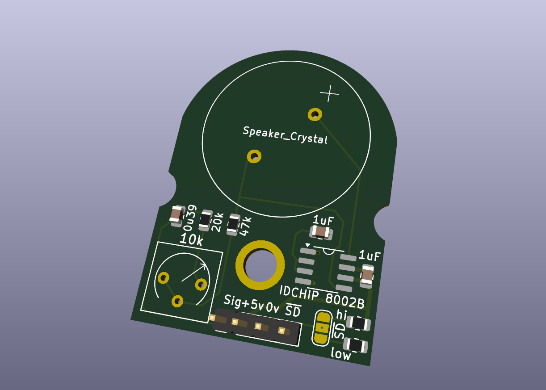

Speaker module 8002B for arduino
Project images are for reference only. Actual production is based on the manufacturing files on the project page.
Please review the designer's notes (e.g., PCB thickness) and select the appropriate options.
PCBWay is not responsible
for issues caused by unsuitable parameter selections.
For more important ordering information, please refer to
Read More
