Laminar Labs
INDONESIA • + Follow
Tools, APP Software Used etc.
|
|
SlimeVR |
|
|
|
Firmware |
|
|
VS Code |
|
|
PlatformIOPlatformIO Labs
|
|
|
3D Printer (generic) |
|
|
|
3D printed case |
Description
SlimeVR Blueberry AUX LSM6DSV
LSM6DSV always-on 3-axis accelerometer and 3-axis gyroscope. The old version of LSM6DSV doesn't include a battery connector but it has auxilary port for additional sensor without needing full board and battery.
Install battery before flashing the firmware and handle with care when installing the board into 3D printed case cause you may break the switch
Apr 08,2026
12 views

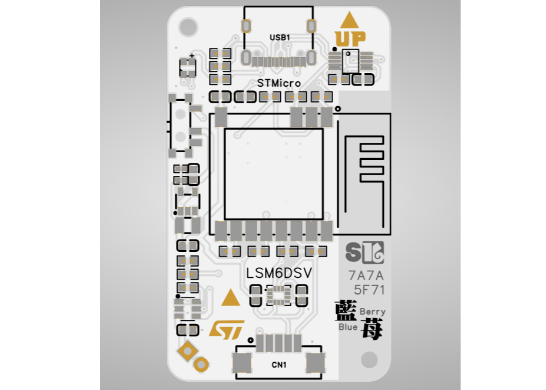

SlimeVR Blueberry AUX LSM6DSV
2 Layers PCB 30 x 30 mm FR-4, 1 mm, 1, HASL with lead, White Solder Mask, Black silkscreen
High precision always-on 3-axis accelerometer and 3-axis gyroscope Virtual Reality tracker
12
0
0
Published: Apr 08,2026
Standard PCB
Download Gerber file 0
BOM(Bill of materials)
Centroid file
PCBWay Donate 10% cost To Author
Only PCB
PCB+Assembly
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-MIT
License.
